Ceratizit LNKX 0925 ZER-M50 CTPM241 CoreLine 5635542500 (0792723)
Ceratizit LNKX 0925 ZER-M50 CTPM241 CoreLine 5635542500 (0792723)
Couldn't load pickup availability
Ceratizit Article Number: 5635542500
Ceratizit Material Number: 5635542500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit LNKX 0925 ZER-M50 CTPM241 CoreLine 5635542500 | |
| EDP # | 0792723 | |
| Weight (1 pc.) | 0.04 oz | 1.2 g |
| designation | 0925ZSR | |

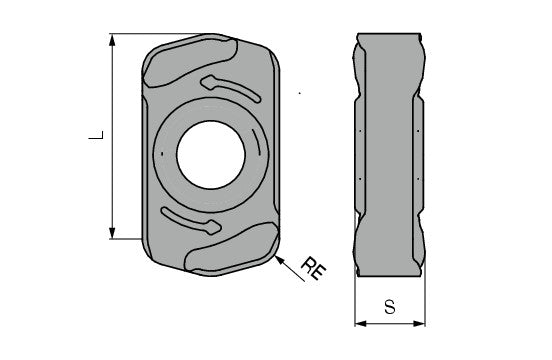

| Corner radius / RE | 0.0394" | 1.000 mm |
| Inscribed circle diameter / IC | 0.2098" | 5.330 mm |
| Fixing hole diameter / D1 | 0.1051" | 2.670 mm |
| Cutting edge length / L | 0.3543" | 9.000 mm |
| Trailing edge length / BS | 0.0610" | 1.550 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Clearance angle major / AN | 7 ° | |
| Insert length / INSL | 0.3717" | 9.440 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
