Description
Ceratizit Article Number: 56409801
Ceratizit Material Number: 5640980100
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

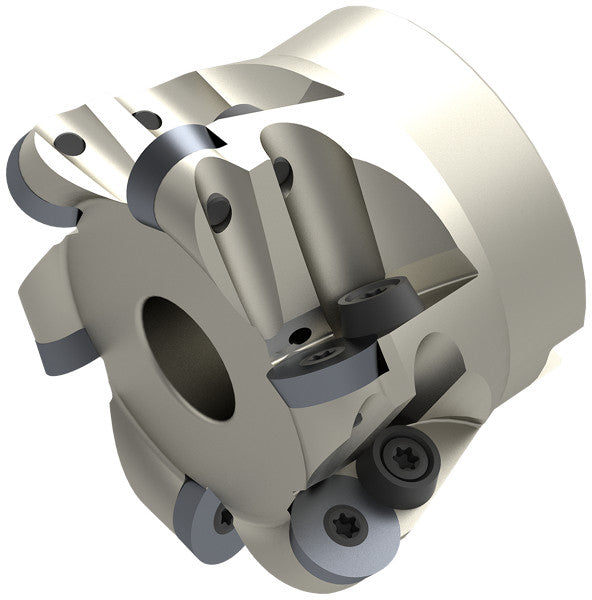

| Name | Ceratizit R1007A.80.7.54,5-12.IK CoreLine Shell Button Insert Milling Cutter 56409801 | |
| EDP # | 0792767 | |
| Workpiece Material(s) | Stainless Steel (Yellow) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 37.0 oz | 1061 g |
| Machining process - Main Application | Face milling | |

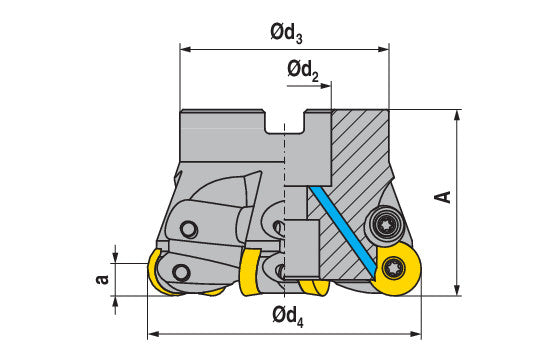

| Cutting diameter maximum / DCX | 3.1496" | 80.000 mm |
| Depth of cut maximum / APMX | 0.1378" | 3.500 mm |
| Face mounted insert count / ZNF | 7.0000" | 177.800 mm |
| Overall length / OAL | 2.1457" | 54.500 mm |
| Hub diameter / DHUB | 2.3622" | 60.000 mm |
| Mounting spigot diameter / DCONMS | 1.0630" | 27.000 mm |
| Insert | RD.X 12T3.. | |
| torque moment | 2.4 Nm | |
| Minimum Extension (DIN 6535 HA) | -0.2165" - -0.1378" | -5.500 - -3.500 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
