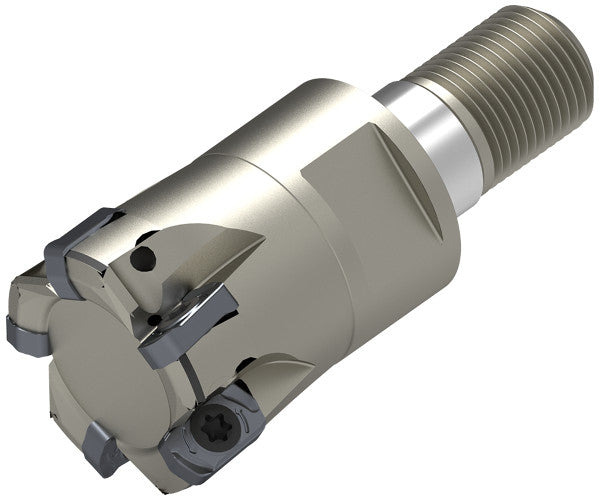

Ceratizit GDHFC.32.5.M16.09.IK CoreLine - High-feed Screw-in Cutter 5641103205 (0792776)
Ceratizit GDHFC.32.5.M16.09.IK CoreLine - High-feed Screw-in Cutter 5641103205 (0792776)
Couldn't load pickup availability
Ceratizit Article Number: 5641103205
Ceratizit Material Number: 5641103205
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit GDHFC.32.5.M16.09.IK CoreLine - High-feed Screw-in Cutter 5641103205 | |
| EDP # | 0792776 | |
| Weight (1 pc.) | 8.0 oz | 234 g |
| Machining process - Main Application | Face milling | |

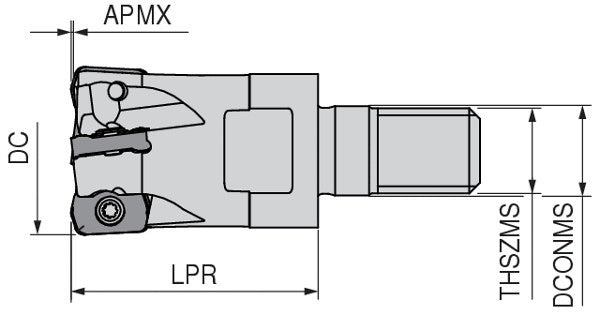

| Cutting diameter / DC | 1.2598" | 32.000 mm |
| Face mounted insert count / ZNF | 5 | |
| Depth of cut maximum / APMX | 0.0295" | 0.750 mm |
| Protruding length / LPR | 1.6535" | 42.000 mm |
| Neck Diameter / DN | 1.1417" | 29.000 mm |
| Connection thread nominal size / THSZMS | M16 | |
| Mounting spigot diameter / DCONMS | 0.6693" | 17.000 mm |
| Neck diameter (BD) / BD | 1.2205" | 31.000 mm |
| Drive size / DRVS | 0.8661" | 22.000 mm |
| Insert | LNKX 0925.. | |
| Overall length / OAL | 2.5591" | 65.000 mm |
| Head length / LH | 1.1024" | 28.000 mm |
| torque moment | 0.65 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
