Description
Ceratizit Article Number: 56714082
Ceratizit Material Number: 5671408200
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

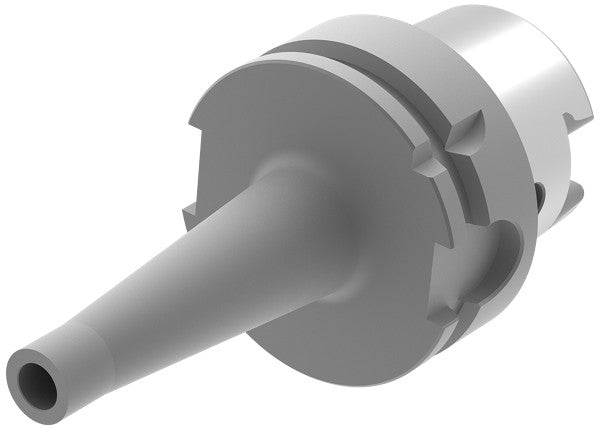

| Name | Ceratizit ^ISO12164-A63.EA.M8.13,8/23,0.50.IK CoreLine Adapter For Milling Cutters With Threaded End 56714082 | |
| EDP # | 0792846 | |
| Weight (1 pc.) | 27.0 oz | 763 g |
| Machine interface size | HSK-A 63 | |
| Connection thread nominal size workpiece side / THSZWS | M8 | |

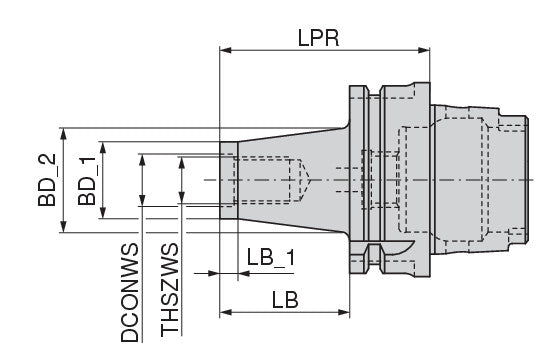

| Clamping diameter (DCONWS) / DCONWS | 0.3346" | 8.500 mm |
| Body length / LB | 1.9685" | 50.000 mm |
| Body diameter, 1st cutting step / BD_1 | 0.5433" | 13.800 mm |
| Body diameter, 2nd cutting step / BD_2 | 0.9055" | 23.000 mm |
| Body length 1 / LB_1 | 0.4724" | 12.000 mm |
| Protruding length / LPR | 2.9921" | 76.000 mm |
| Overall length / OAL | 4.2520" | 108.000 mm |
| Balance quality | G 2.5 n<sub>max.</sub>30000 | |
Background Information:
The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.
The HSK-A form is probably the most common in the HSK family, and features drive slots which serve both to increase torque capability and provide rotational indexing (unequal slots). External features provide an interface for automatic tool change grippers and carousels. There is a bore milled directly into the side of the interface for RFID chip placement, and a threaded internal passage for coolant-through operation.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
