Description
Ceratizit Article Number: 56727082
Ceratizit Material Number: 5672708200
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

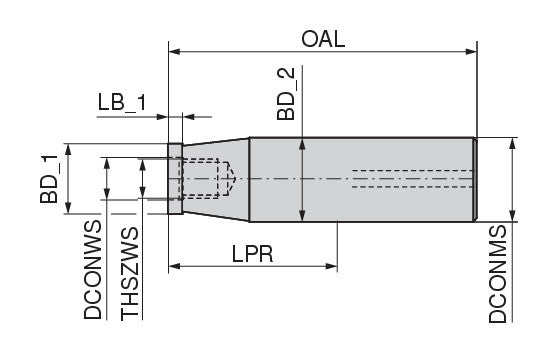

| Properties | ||
|---|---|---|
| Name | Ceratizit ^DIN1835.16.HA.EA.M8.13,8/15,8.40.IK CoreLine - Cylindrical Milling Bar For Cutters With Threaded End 56727082 | |
| EDP # | 0792876 | |
| Weight (1 pc.) | 4.0 oz | 120 g |
| Connection thread nominal size workpiece side / THSZWS | M8 | |
| Clamping diameter (DCONWS) / DCONWS | 0.3346" | 8.500 mm |
| Body diameter, 1st cutting step / BD_1 | 0.5433" | 13.800 mm |
| Body diameter, 2nd cutting step / BD_2 | 0.6220" | 15.800 mm |
| Body length 1 / LB_1 | 0.3071" | 7.800 mm |
| Protruding length / LPR | 1.5748" | 40.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6299" | 16.000 mm |
| Overall length / OAL | 3.4646" | 88.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
