Ceratizit ^DIN1835.25.HB.EA.M12.21,0/24,9.30.IK CoreLine - Screw-in Adapter With Cylindrical Shank Weldon 56729121 (0792887)
Ceratizit ^DIN1835.25.HB.EA.M12.21,0/24,9.30.IK CoreLine - Screw-in Adapter With Cylindrical Shank Weldon 56729121 (0792887)
Couldn't load pickup availability
Ceratizit Article Number: 56729121
Ceratizit Material Number: 5672912100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

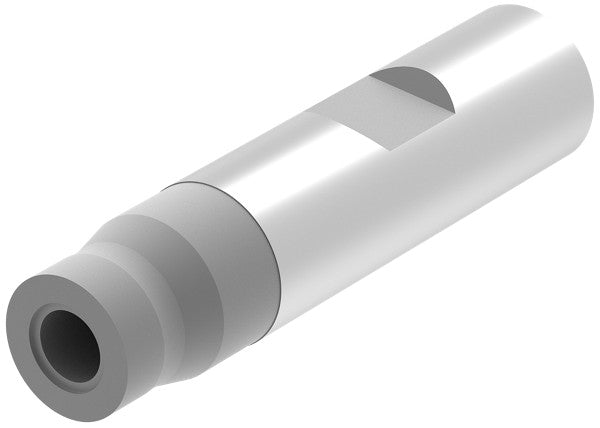

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

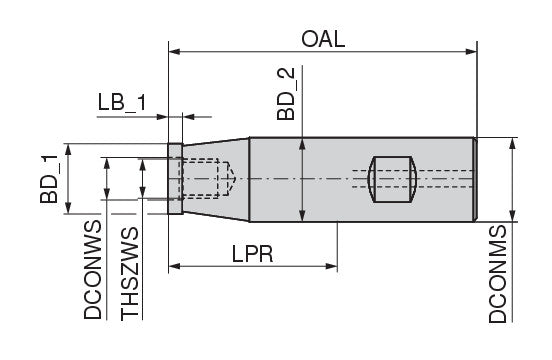

| Properties | ||
|---|---|---|
| Name | Ceratizit ^DIN1835.25.HB.EA.M12.21,0/24,9.30.IK CoreLine - Screw-in Adapter With Cylindrical Shank Weldon 56729121 | |
| EDP # | 0792887 | |
| Weight (1 pc.) | 10.0 oz | 284 g |
| Connection thread nominal size workpiece side / THSZWS | M12 | |
| Clamping diameter (DCONWS) / DCONWS | 0.4921" | 12.500 mm |
| Body diameter, 1st cutting step / BD_1 | 0.8268" | 21.000 mm |
| Body diameter, 2nd cutting step / BD_2 | 0.9803" | 24.900 mm |
| Body length 1 / LB_1 | 0.4724" | 12.000 mm |
| Protruding length / LPR | 1.1811" | 30.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.9843" | 25.000 mm |
| Overall length / OAL | 3.3858" | 86.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
