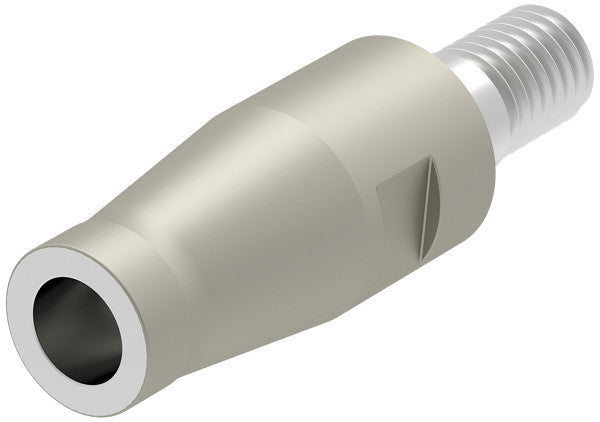

Ceratizit ^M10.RED.M8.40.IK CoreLine - Reductions For Screw-in Cutters 56735081 (0792899)
Ceratizit ^M10.RED.M8.40.IK CoreLine - Reductions For Screw-in Cutters 56735081 (0792899)
Couldn't load pickup availability
Ceratizit Article Number: 56735081
Ceratizit Material Number: 5673508100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

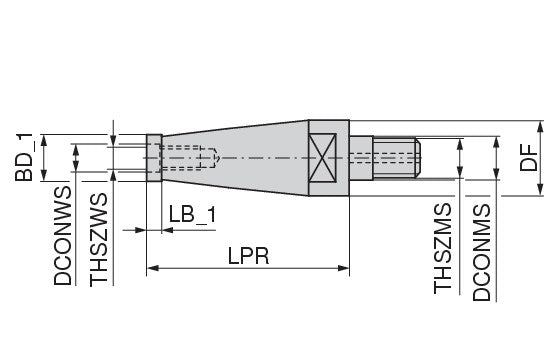

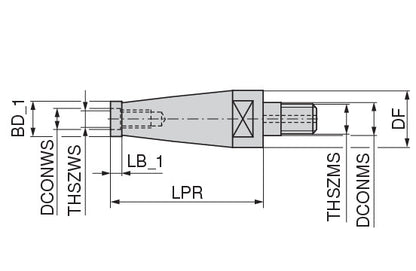

| Properties | ||
|---|---|---|
| Name | Ceratizit ^M10.RED.M8.40.IK CoreLine - Reductions For Screw-in Cutters 56735081 | |
| EDP # | 0792899 | |
| Weight (1 pc.) | 2.0 oz | 67.3 g |
| Connection thread nominal size workpiece side / THSZWS | M8 | |
| Clamping diameter (DCONWS) / DCONWS | 0.3346" | 8.500 mm |
| Body diameter, 1st cutting step / BD_1 | 0.5433" | 13.800 mm |
| Body length 1 / LB_1 | 0.3071" | 7.800 mm |
| Protruding length / LPR | 1.5748" | 40.000 mm |
| Mounting spigot diameter / DCONMS | 0.4134" | 10.500 mm |
| Drive size / DRVS | 0.5906" | 15.000 mm |
| Flange diameter / DF | 0.7087" | 18.000 mm |
| Connection thread nominal size / THSZMS | M10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
