Description
Ceratizit Article Number: 62304024
Ceratizit Material Number: 6230402400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ST.19,7-24,1.M10.40.IK CoreLine Fine Boring Head 62304024 | |
| EDP # | 0793041 | |
| Weight (1 pc.) | 3.0 oz | 72.3 g |

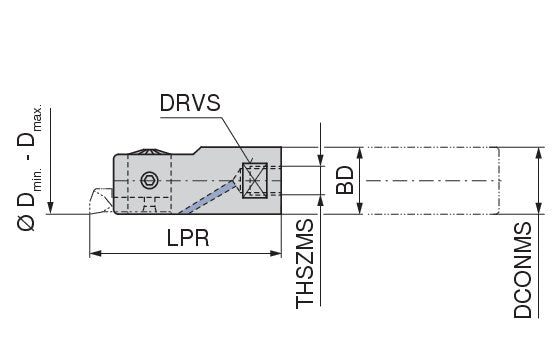

| Dmin - Dmax | 19.7 - 24.1 | |
| Mounting spigot diameter / DCONMS | 0.7087" | 18.000 mm |
| Protruding length / LPR | 1.5669" | 39.800 mm |
| Drive size / DRVS | 0.6299" | 16.000 mm |
| Neck diameter (BD) / BD | 0.7480" | 19.000 mm |
| Connection thread nominal size / THSZMS | M10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
