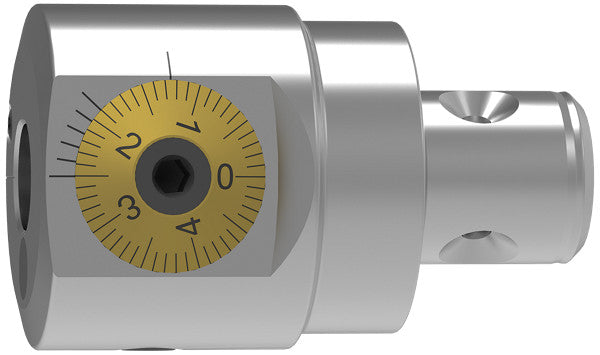

Ceratizit ST.MOD.3,0-88,1.STM28.60.IK CoreLine Single Point Boring Heads Modular System 62332553 (0793079)
Ceratizit ST.MOD.3,0-88,1.STM28.60.IK CoreLine Single Point Boring Heads Modular System 62332553 (0793079)
Couldn't load pickup availability
Ceratizit Article Number: 62332553
Ceratizit Material Number: 6233255300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

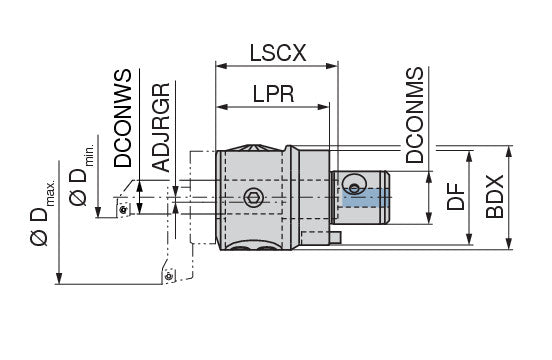

| Properties | ||
|---|---|---|
| Name | Ceratizit ST.MOD.3,0-88,1.STM28.60.IK CoreLine Single Point Boring Heads Modular System 62332553 | |
| EDP # | 0793079 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 36.0 oz | 1019 g |
| Dmin - Dmax | 3.0 - 88.1 | |
| Weight of item / WT | 0.98 kg | |
| Machine interface size | STM 28 | |
| Clamping diameter (DCONWS) / DCONWS | 0.6299" | 16.000 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Body diameter maximum / BDX | 2.1654" | 55.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| Clamping length maximum machine side / LSCX | 2.4409" | 62.000 mm |
| Adjustment range radial - range / ADJRGR | 0 - 2.7 | |
| Overall length / OAL | 3.5433" | 90.000 mm |
| Shank length / LS | 1.1811" | 30.000 mm |
| Version | Analog | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
