Description
Ceratizit Article Number: 62372653
Ceratizit Material Number: 6237265300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

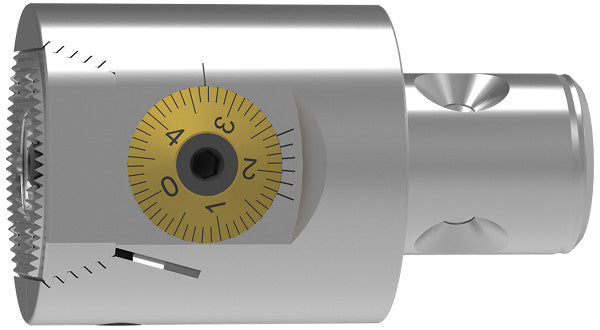

| Name | Ceratizit ST.MOD.3,0-320.STM36.71,6.IK.MULTI CoreLine Multi-Head Boring And Fine Boring Head 62372653 | |
| EDP # | 0793211 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 63.0 oz | 1789 g |

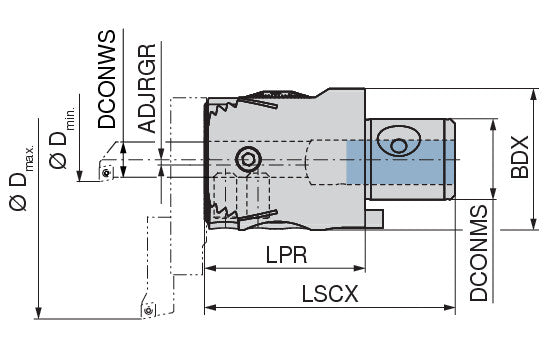

| Dmin - Dmax | 3 - 320 | |
| Machine interface size | STM 36 | |
| Clamping diameter (DCONWS) / DCONWS | 0.6299" | 16.000 mm |
| Mounting spigot diameter / DCONMS | 1.4173" | 36.000 mm |
| Body diameter maximum / BDX | 2.4803" | 63.000 mm |
| Protruding length / LPR | 2.8189" | 71.600 mm |
| Clamping length maximum machine side / LSCX | 4.3937" | 111.600 mm |
| Adjustment range radial - range / ADJRGR | 0 - 2.7 | |
| Overall length / OAL | 4.3937" | 111.600 mm |
| Shank length / LS | 1.5748" | 40.000 mm |
| Version | Analog | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
