Description
Ceratizit Article Number: 62383010
Ceratizit Material Number: 6238301000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ST.SE.MICRO.1,0-2,3.4.4,0 TIN SpinTools Solid Carbide Cutting Inserts 62383010 | |
| EDP # | 0793231 | |
| Weight (1 pc.) | 0.5 oz | 13.8 g |

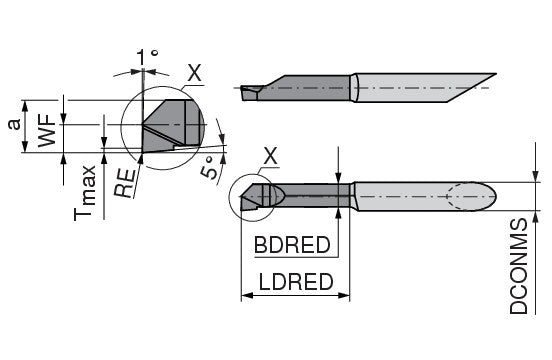

| Dmin - Dmax | 1.0 - 2.3 | |
| Mounting spigot diameter / DCONMS | 0.1575" | 4.000 mm |
| Reduced body diameter length / LDRED | 0.1575" | 4.000 mm |
| Corner radius / RE | 0.0020" | 0.050 mm |
| A | 0.0374" | 0.950 mm |
| Body diameter, reduced / BDRED | 0.0256" | 0.650 mm |
| Functional width / WF | 0.0197" | 0.500 mm |
| T max. | 0.0039" | 0.100 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
