Description
Ceratizit Article Number: 62383052
Ceratizit Material Number: 6238305200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

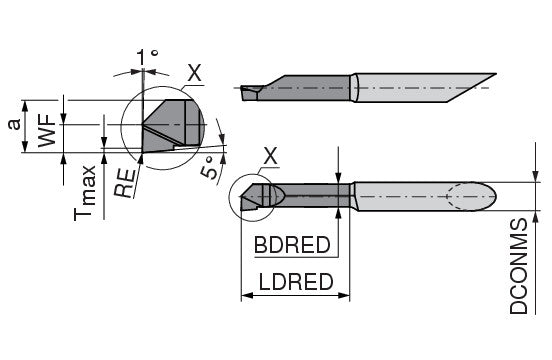

| Properties | ||
|---|---|---|
| Name | Ceratizit ST.SE.MICRO.5,2-6,3.7.20,3 TIN SpinTools Solid Carbide Cutting Inserts 62383052 | |
| EDP # | 0793235 | |
| Weight (1 pc.) | 1.0 oz | 24.8 g |
| Dmin - Dmax | 5.2 - 6.3 | |
| Mounting spigot diameter / DCONMS | 0.2756" | 7.000 mm |
| Reduced body diameter length / LDRED | 0.7992" | 20.300 mm |
| Corner radius / RE | 0.0020" | 0.050 mm |
| A | 0.1969" | 5.000 mm |
| Body diameter, reduced / BDRED | 0.1673" | 4.250 mm |
| Functional width / WF | 0.1024" | 2.600 mm |
| T max. | 0.0197" | 0.500 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
