Description
Ceratizit Article Number: 62410000
Ceratizit Material Number: 6241000000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

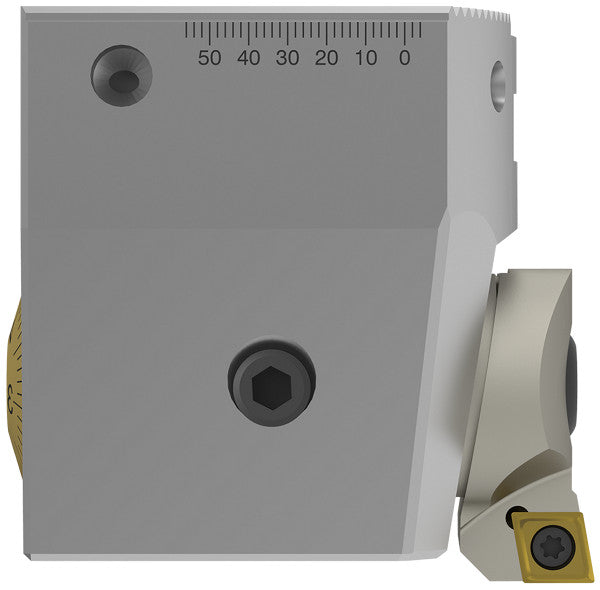

| Name | Ceratizit ST.SCAB.90°.150-655 SpinTools Finish Boring Block Analogue 62410000 | |
| EDP # | 0793270 | |
| Weight (1 pc.) | 72.0 oz | 2046 g |

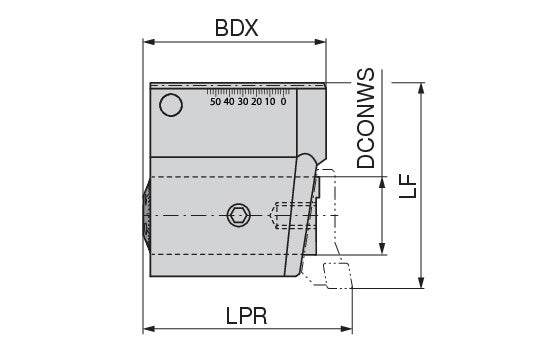

| Dmin - Dmax | 150 - 655 | |
| Clamping diameter (DCONWS) / DCONWS | 1.1811" | 30.000 mm |
| Body diameter maximum / BDX | 2.5591" | 65.000 mm |
| Protruding length / LPR | 2.9528" | 75.000 mm |
| Adjustment range radial - range / ADJRGR | ± 2.0 | |
| Functional length / LF | 2.9528" | 75.000 mm |
| Version | Analog | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
