Description
Ceratizit Article Number: 62438138
Ceratizit Material Number: 6243813800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ST.PH.86-138.90°.CC..09T3.. CoreLine Insert Holder 62438138 | |
| EDP # | 0793276 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) | |
| Weight (1 pc.) | 20.0 oz | 568 g |
| Insert | CC.. 09T3 | |

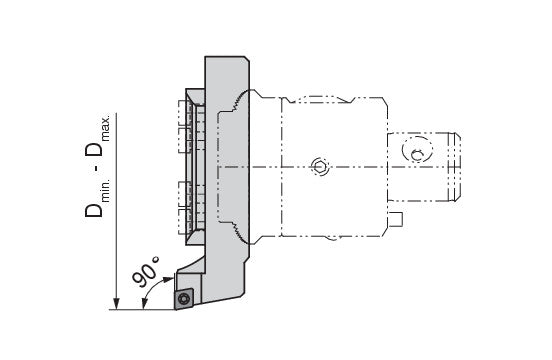

| Dmin - Dmax | 86 - 138 | |
| Cutting diameter maximum / DCX | 5.4331" | 138.000 mm |
| Cutting diameter minimum / DCN | 3.3858" | 86.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
