Description
Ceratizit Article Number: 70699020
Ceratizit Material Number: 7069902000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

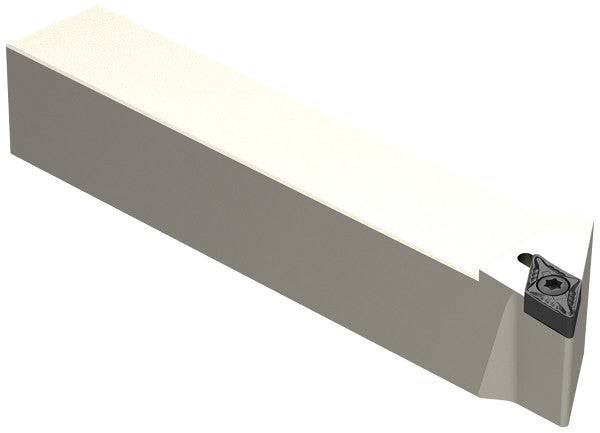

| Name | Ceratizit SDJNL 2020 K11 CoreLine - 93° - Toolholder With Screw Clamping 70699020 | |
| EDP # | 0793465 | |
| Workpiece Material(s) | Steel (Blue) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 14.0 oz | 385 g |

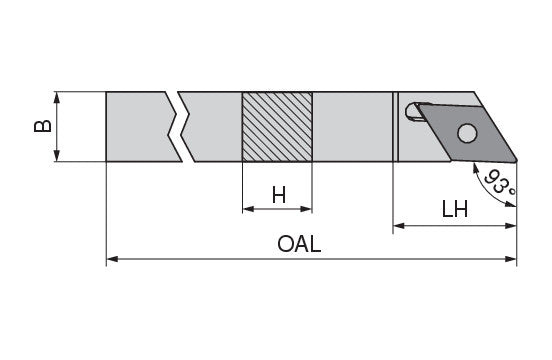

| Shank height / H | 0.7874" | 20.000 mm |
| Shank width / B | 0.7874" | 20.000 mm |
| Overall length / OAL | 4.9213" | 125.000 mm |
| Head length / LH | 0.8386" | 21.300 mm |
| Functional width / WF | 0.7874" | 20.000 mm |
| Insert | DNGU 1104 | |
| Overall height / OAH | 0.9685" | 24.600 mm |
| torque moment | 3.2 Nm | |
| Clamping system | Conical screw clamping for negative indexable inserts | |
| holder form | SDJN 93° | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
