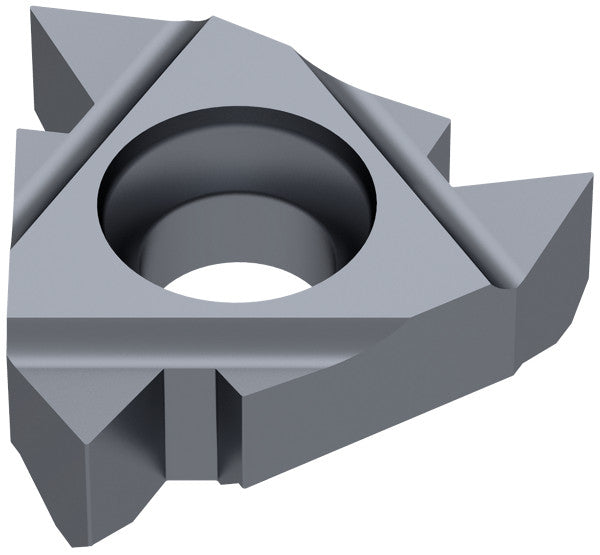

Ceratizit 16IR.AG60 CCN 20 CoreLine - Right Hand Internal Thread Turning Insert 71210244 (0793713)
Ceratizit 16IR.AG60 CCN 20 CoreLine - Right Hand Internal Thread Turning Insert 71210244 (0793713)
Couldn't load pickup availability
Ceratizit Article Number: 71210244
Ceratizit Material Number: 7121024400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 16IR.AG60 CCN 20 CoreLine - Right Hand Internal Thread Turning Insert 71210244 | |
| EDP # | 0793713 | |
| Weight (1 pc.) | 0.2 oz | 5.6 g |
| Thread pitch range / TP | 0.5 - 3 | |

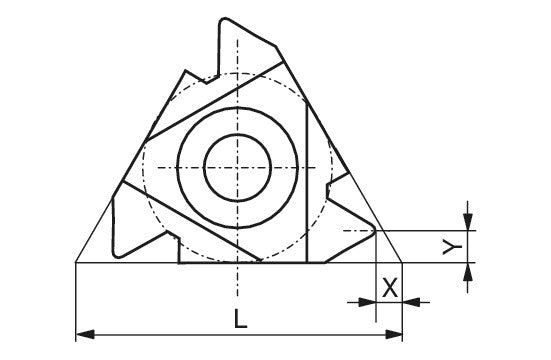

| Insert length / INSL | 0.6299" | 16.000 mm |
| Profile distance ex / PDX | 0.0472" | 1.200 mm |
| Profile distance ey / PDY | 0.0669" | 1.700 mm |
| Coating name / Grade (Ceratizit) / COATN | CCN20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
