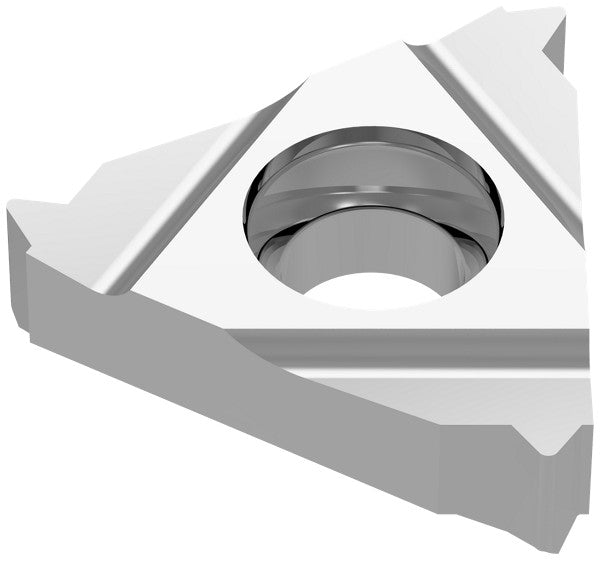

Ceratizit 16ER.1,75.ISO CWK20 CoreLine - Right Hand External Thread Turning Insert 71220650 (0793864)
Ceratizit 16ER.1,75.ISO CWK20 CoreLine - Right Hand External Thread Turning Insert 71220650 (0793864)
Couldn't load pickup availability
Ceratizit Article Number: 71220650
Ceratizit Material Number: 7122065000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 16ER.1,75.ISO CWK20 CoreLine - Right Hand External Thread Turning Insert 71220650 | |
| EDP # | 0793864 | |
| Weight (1 pc.) | 0.2 oz | 5.9 g |
| Thread pitch / TP | 0.0689" | 1.750 mm |

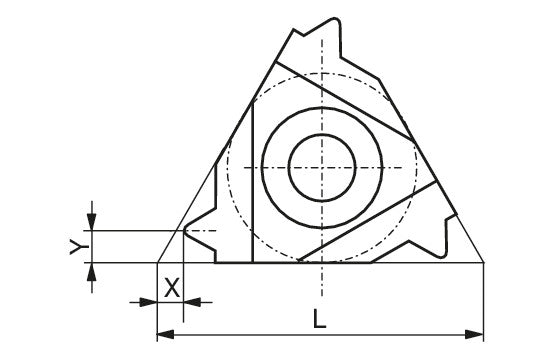

| Insert length / INSL | 0.6299" | 16.000 mm |
| Profile distance ex / PDX | 0.0354" | 0.900 mm |
| Profile distance ey / PDY | 0.0472" | 1.200 mm |
| Coating name / Grade (Ceratizit) / COATN | CWK20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
