Ceratizit 11IL.0,70.ISO CCN20 CoreLine - Left Hand Internal Thread Turning Insert 71226211 (0794253)
Ceratizit 11IL.0,70.ISO CCN20 CoreLine - Left Hand Internal Thread Turning Insert 71226211 (0794253)
Couldn't load pickup availability
Ceratizit Article Number: 71226211
Ceratizit Material Number: 7122621100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

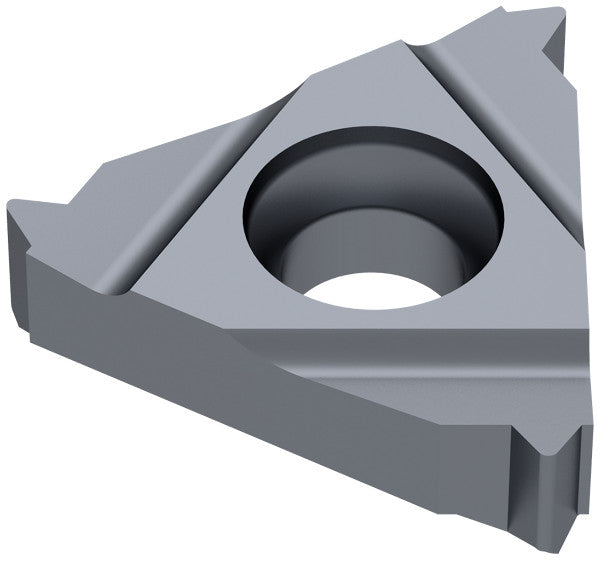

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 11IL.0,70.ISO CCN20 CoreLine - Left Hand Internal Thread Turning Insert 71226211 | |
| EDP # | 0794253 | |
| Weight (1 pc.) | 0.1 oz | 3.8 g |

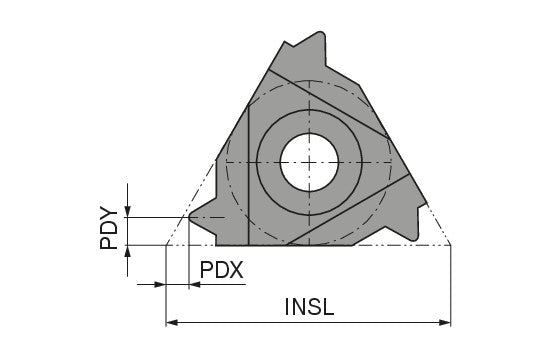

| Thread pitch / TP | 0.0276" | 0.700 mm |
| Insert length / INSL | 0.4331" | 11.000 mm |
| Profile distance ex / PDX | 0.0236" | 0.600 mm |
| Profile distance ey / PDY | 0.0236" | 0.600 mm |
| Coating name / Grade (Ceratizit) / COATN | CCN20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
