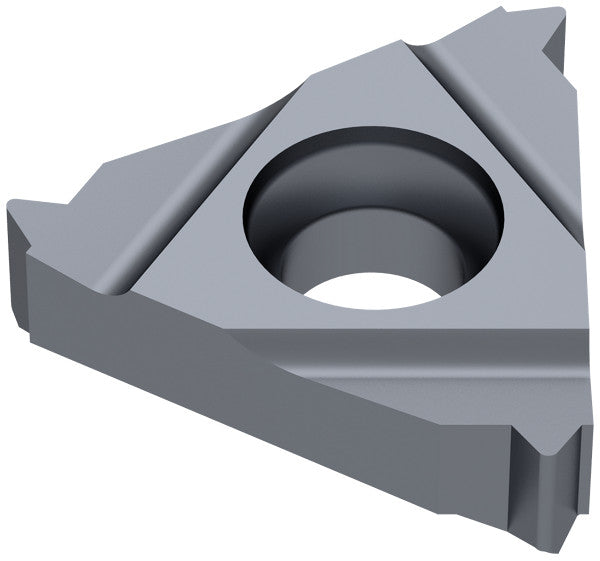

Ceratizit 22IL.6,00.ISO CCN20 CoreLine - Left Hand Internal Thread Turning Insert 71226280 (0794281)
Ceratizit 22IL.6,00.ISO CCN20 CoreLine - Left Hand Internal Thread Turning Insert 71226280 (0794281)
Couldn't load pickup availability
Ceratizit Article Number: 71226280
Ceratizit Material Number: 7122628000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 22IL.6,00.ISO CCN20 CoreLine - Left Hand Internal Thread Turning Insert 71226280 | |
| EDP # | 0794281 | |
| Weight (1 pc.) | 0.5 oz | 12.9 g |

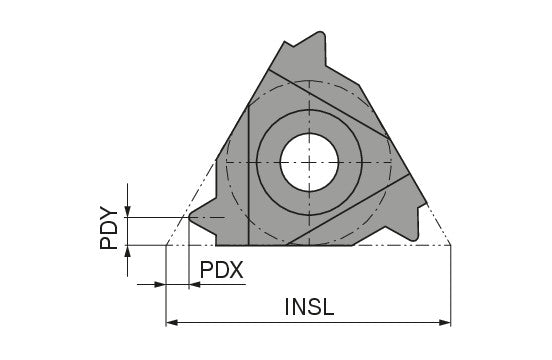

| Thread pitch / TP | 0.2362" | 6.000 mm |
| Insert length / INSL | 0.8661" | 22.000 mm |
| Profile distance ex / PDX | 0.0787" | 2.000 mm |
| Profile distance ey / PDY | 0.1142" | 2.900 mm |
| Coating name / Grade (Ceratizit) / COATN | CCN20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
