Description
Ceratizit Article Number: 7124814201
Ceratizit Material Number: 7124814201
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

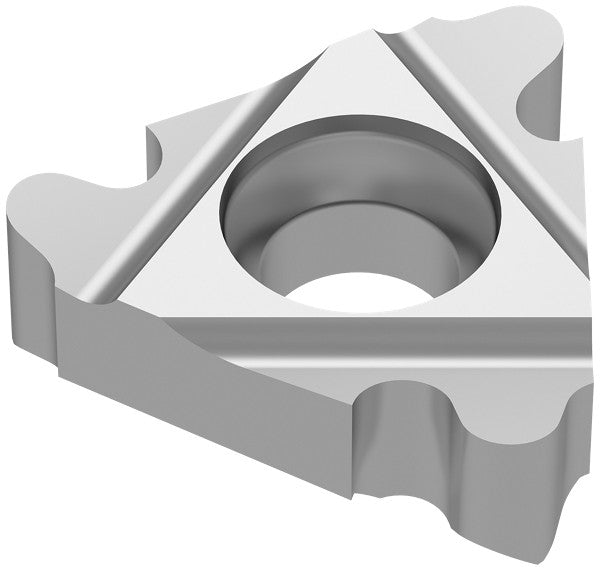

| Name | Ceratizit 16ER.8.RD CTWN520 CoreLine - Right Hand External Thread Turning Insert 7124814201 | |
| EDP # | 0794751 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Threads per inch / TPI | 8 | |

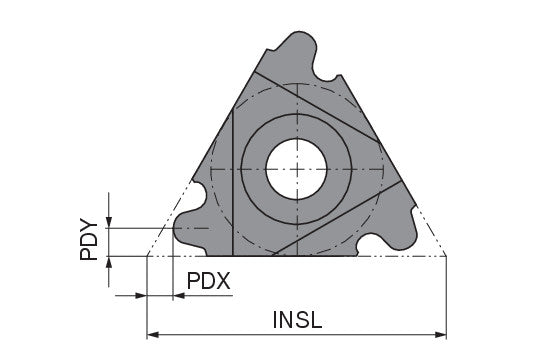

| Insert length / INSL | 0.6299" | 16.000 mm |
| Profile distance ex / PDX | 0.0551" | 1.400 mm |
| Profile distance ey / PDY | 0.0512" | 1.300 mm |
| Number of passes | 10 - 20 | |
| Tooth count / NT | 1.0000" | 25.400 mm |
| Coating name / Grade (Ceratizit) / COATN | CTWN520 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
