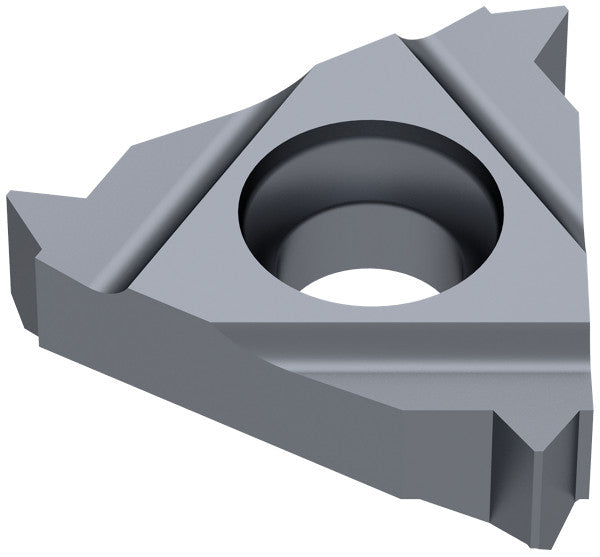

Ceratizit 11IL.14.NPT CCN20 CoreLine - Left Hand Internal Thread Turning Insert 71262214 (0794873)
Ceratizit 11IL.14.NPT CCN20 CoreLine - Left Hand Internal Thread Turning Insert 71262214 (0794873)
Couldn't load pickup availability
Ceratizit Article Number: 71262214
Ceratizit Material Number: 7126221400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 11IL.14.NPT CCN20 CoreLine - Left Hand Internal Thread Turning Insert 71262214 | |
| EDP # | 0794873 | |
| Threads per inch / TPI | 14 | |

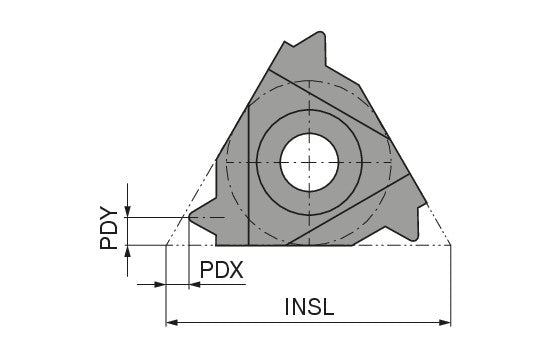

| Insert length / INSL | 0.4331" | 11.000 mm |
| Profile distance ex / PDX | 0.0354" | 0.900 mm |
| Profile distance ey / PDY | 0.0433" | 1.100 mm |
| Coating name / Grade (Ceratizit) / COATN | CCN20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
