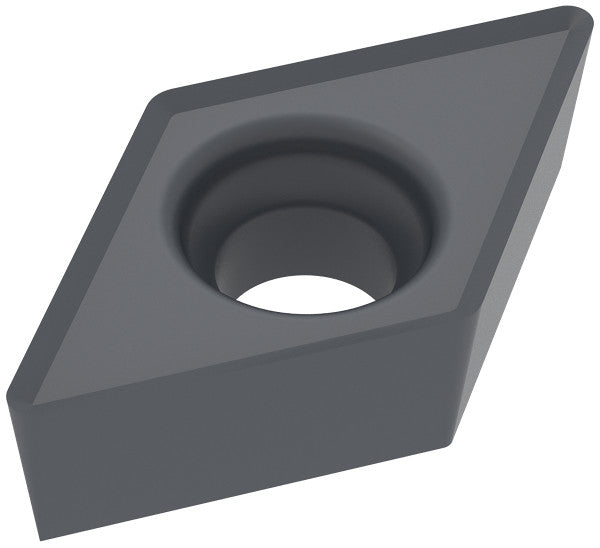

Ceratizit DCGT 0702035FN-FM37 WPU7620 CoreLine Carbide Turning indexable Insert 72400535 (0795604)
Ceratizit DCGT 0702035FN-FM37 WPU7620 CoreLine Carbide Turning indexable Insert 72400535 (0795604)
Couldn't load pickup availability
Ceratizit Article Number: 72400535
Ceratizit Material Number: 7240053500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DCGT 0702035FN-FM37 WPU7620 CoreLine Carbide Turning indexable Insert 72400535 | |
| EDP # | 0795604 | |
| designation | 0702035FN | |
| Corner radius / RE | 0.0138" | 0.350 mm |
| Cutting edge length / L | 0.3051" | 7.750 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Cutting edge effective length / LE | 0.1614" | 4.100 mm |
| Size | 7.0000" | 177.800 mm |
| Designation | DCGT 0702035FN | |
| Chip breaker (Ceratizit) / CBMD | -FM37 | |
| Coating name / Grade (Ceratizit) / COATN | WPU7620 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
