Ceratizit 3005.3,0.6.L-CP-R15 WPU7620 CoreLine Carbide Turning indexable Insert 72470536 (0795844)
Ceratizit 3005.3,0.6.L-CP-R15 WPU7620 CoreLine Carbide Turning indexable Insert 72470536 (0795844)
Couldn't load pickup availability
Ceratizit Article Number: 72470536
Ceratizit Material Number: 7247053600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

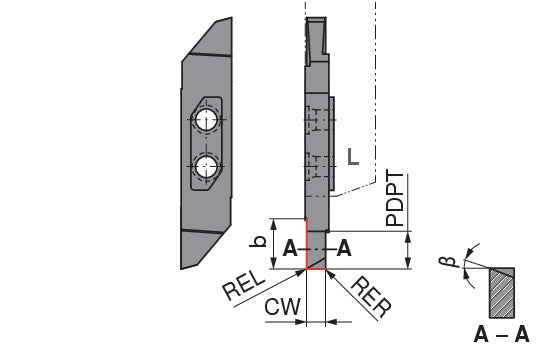

| Properties | ||
|---|---|---|
| Name | Ceratizit 3005.3,0.6.L-CP-R15 WPU7620 CoreLine Carbide Turning indexable Insert 72470536 | |
| EDP # | 0795844 | |
| Cutting width / CW | 0.1181" | 3.000 mm |
| Profile depth insert / PDPT | 0.2362" | 6.000 mm |
| Insert length / INSL | 1.5748" | 40.000 mm |
| Shank width (B) | 0.3150" | 8.000 mm |
| Coating name / Grade (Ceratizit) / COATN | WPU7620 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
