Ceratizit S16.B10 HA CoreLine - Cylindrical Shank Adapter For Circular Saw Blades 72900210 (0796097)
Ceratizit S16.B10 HA CoreLine - Cylindrical Shank Adapter For Circular Saw Blades 72900210 (0796097)
Couldn't load pickup availability
Ceratizit Article Number: 72900210
Ceratizit Material Number: 7290021000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

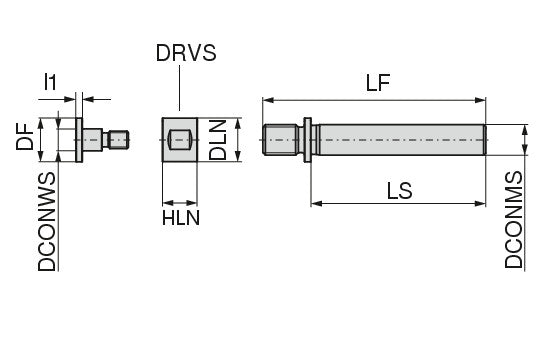

| Properties | ||
|---|---|---|
| Name | Ceratizit S16.B10 HA CoreLine - Cylindrical Shank Adapter For Circular Saw Blades 72900210 | |
| EDP # | 0796097 | |
| Mounting spigot diameter / DCONMS h7 | 0.6299" | 16.000 mm |
| Diameter Lock Nut / DLN | 0.6693" | 17.000 mm |
| Functional length / LF | 2.9134" | 74.000 mm |
| Shank length / LS | 2.1654" | 55.000 mm |
| Lock nut height / HLN | 0.3937" | 10.000 mm |
| Clamping diameter (DCONWS) / DCONWS H7 | 0.3937" | 10.000 mm |
| Drive size / DRVS | 0.6299" | 16.000 mm |
| Flange diameter / DF | 0.6693" | 17.000 mm |
| L1 | 0.1181" | 3.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
