Description
Ceratizit Article Number: 7295708011
Ceratizit Material Number: 7295708011
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

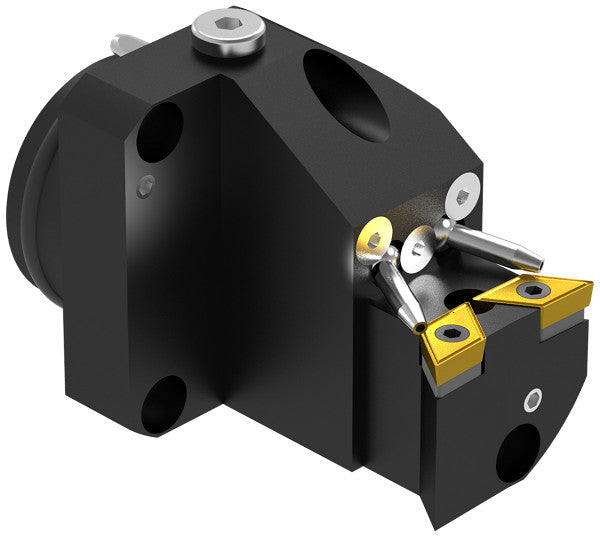

| Name | Ceratizit TS.RD42.65-DC11-R-DC11-L-IK CoreLine Rear Holder | |
| EDP # | 0796215 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Designation | TS.RD42.65-DC11-R-DC11-L-IK | |

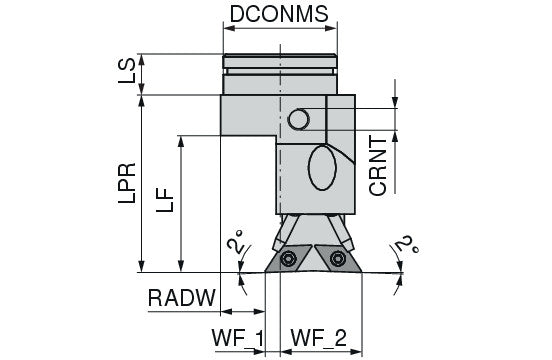

| Protruding length / LPR | 2.5787" | 65.500 mm |
| Functional length / LF | 1.9882" | 50.500 mm |
| Radial width / RADW | 0.6496" | 16.500 mm |
| Insert | DC.. 11T3 | |
| Tsugami | ||
| Y-distance mounting hole / FXHLD_Y | 1.9291" | 49.000 mm |
| X-distance mounting hole / FXHLD_X | 1.1417" | 29.000 mm |
| Tool cutting edge angle / KAPR | 92 ° | |
| Coolant entry style code, radial thread size / CRNT | M8x1 | |
| Mounting spigot diameter / DCONMS g6 | 1.6535" | 42.000 mm |
| Shank length / LS | 0.5906" | 15.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
