Description
Ceratizit Article Number: 7295720018
Ceratizit Material Number: 7295720018
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

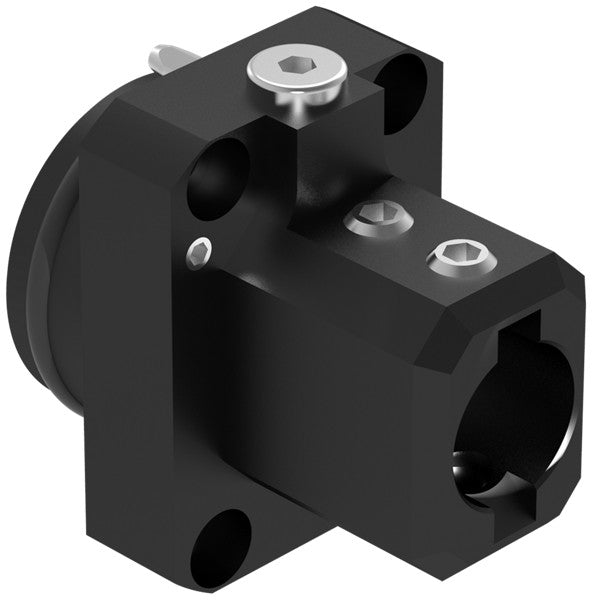

| Name | Ceratizit TS.RE42.65-S-20-IK CoreLine Rear Holder For Clamping Inserts 7295720018 | |
| EDP # | 0796217 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |

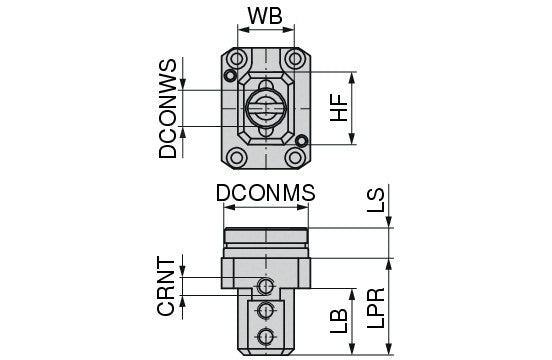

| Designation | TS.RE42.65-S-20-IK | |
| Protruding length / LPR | 1.8898" | 48.000 mm |
| Body length / LB | 1.2992" | 33.000 mm |
| Functional height / HF | 1.4173" | 36.000 mm |
| Clamping diameter (DCONWS) / DCONWS H6 | 0.7874" | 20.000 mm |
| Body width / WB | 1.1024" | 28.000 mm |
| Tsugami | ||
| Y-distance mounting hole / FXHLD_Y | 1.9291" | 49.000 mm |
| X-distance mounting hole / FXHLD_X | 1.1417" | 29.000 mm |
| Coolant entry style code, radial thread size / CRNT | M8x1 | |
| Mounting spigot diameter / DCONMS g6 | 1.6535" | 42.000 mm |
| Shank length / LS | 0.5906" | 15.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
