Description
Ceratizit Article Number: 7298108005
Ceratizit Material Number: 7298108005
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

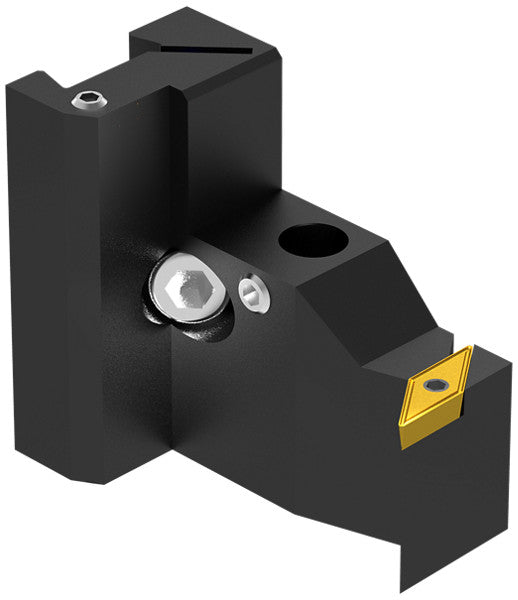

| Name | Ceratizit MU.AH-VC16-R CoreLine Tool Holder Block With Screw Clamping For VC.. indexable Inserts 7298108005 | |
| EDP # | 0796224 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Cast Iron (Red) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Tool cutting edge angle / KAPR | 92 ° | |
| Designation | MU.AH-VC16-R | |

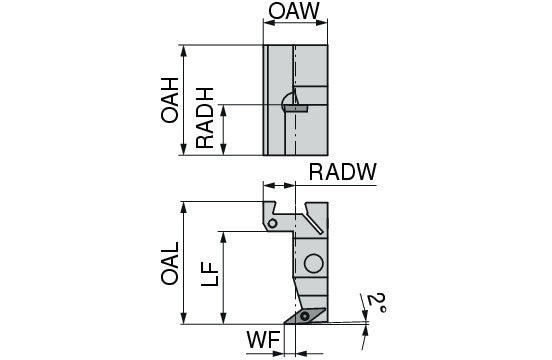

| Overall width / OAW | 1.1024" | 28.000 mm |
| Overall length / OAL | 2.1260" | 54.000 mm |
| Overall height / OAH | 1.8898" | 48.000 mm |
| Functional length / LF | 1.6142" | 41.000 mm |
| Radial width / RADW | 0.5512" | 14.000 mm |
| Radial height / RADH | 0.8661" | 22.000 mm |
| Functional width / WF | 0.5709" | 14.500 mm |
| torque moment | 3.2 Nm | |
| Insert | VC.. 1604 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
