Description
Ceratizit Article Number: 7298203003
Ceratizit Material Number: 7298203003
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

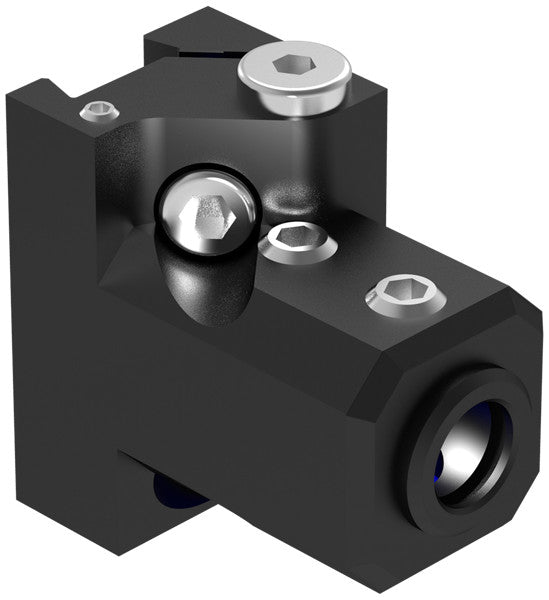

| Name | Ceratizit MU.AH-BH10IK CoreLine Tool Holder Block For Drills And Boring Bars 7298203003 | |
| EDP # | 0796232 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| G | M6 | |
| Designation | MU.AH-BH10IK | |
| Overall width / OAW | 1.1024" | 28.000 mm |
| Overall length / OAL | 1.9488" | 49.500 mm |
| Overall height / OAH | 1.8898" | 48.000 mm |
| Body length / LB | 1.8110" | 46.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.3937" | 10.000 mm |
| Body diameter, 1st cutting step / BD_1 | 0.6299" | 16.000 mm |
| Radial height / RADH | 0.8661" | 22.000 mm |
| Thread designation outside / THOD | M8 | |
| Coolant entry style code, radial thread size / CRNT | M8x1 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
