Description
Ceratizit Article Number: 7298320001
Ceratizit Material Number: 7298320001
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

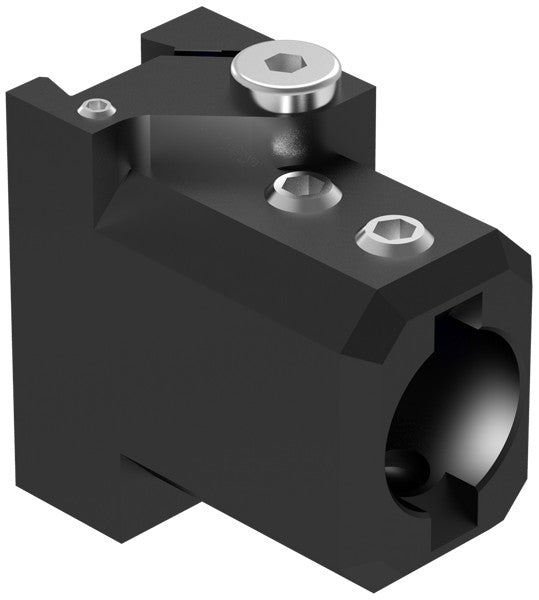

| Name | Ceratizit MU.AH-S20IK CoreLine Tool Holder Block For Clamping Inserts 7298320001 | |
| EDP # | 0796236 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Designation | MU.AH-S20IK | |

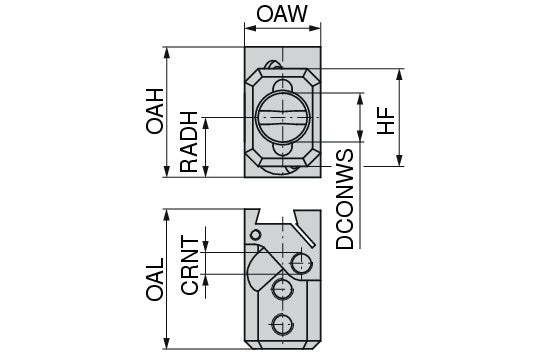

| Overall width / OAW | 1.1024" | 28.000 mm |
| Overall length / OAL | 2.0276" | 51.500 mm |
| Overall height / OAH | 1.8898" | 48.000 mm |
| Functional height / HF | 1.4173" | 36.000 mm |
| Clamping diameter (DCONWS) / DCONWS H6 | 0.7874" | 20.000 mm |
| Radial height / RADH | 0.8661" | 22.000 mm |
| Coolant entry style code, radial thread size / CRNT | M8x1 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
