Ceratizit TXR.3030.2.3 CWX500 CoreLine - Carbide Grooving Insert For Axial Grooving - 73305208 (0796326)
Ceratizit TXR.3030.2.3 CWX500 CoreLine - Carbide Grooving Insert For Axial Grooving - 73305208 (0796326)
Couldn't load pickup availability
Ceratizit Article Number: 73305208
Ceratizit Material Number: 7330520800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

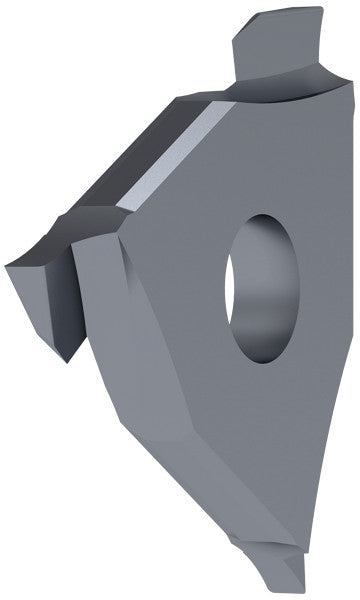

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

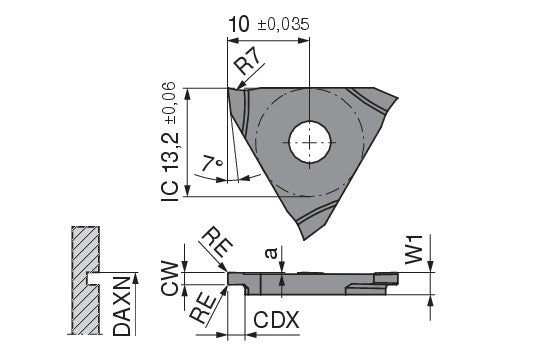

| Properties | ||
|---|---|---|
| Name | Ceratizit TXR.3030.2.3 CWX500 CoreLine - Carbide Grooving Insert For Axial Grooving - 73305208 | |
| EDP # | 0796326 | |
| Machining process - Main Application | Grooving and turning | |
| Cutting width / CW | 0.1181" | 3.000 mm |
| Insert width / W1 | 0.1457" | 3.700 mm |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting depth maximum / CDX | 0.1181" | 3.000 mm |
| Axial groove outside diameter minimum / DAXN | 1.1811" | 30.000 mm |
| A | 0.0079" | 0.200 mm |
| Insert hand / IH | R | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
