Description
Ceratizit Article Number: 73312393
Ceratizit Material Number: 7331239300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MINICUT.11.L.0,93.1,5 CWX500 CoreLine - Cutting Inserts For Grooving - 73312393 | |
| EDP # | 0796416 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Product-Carbon-Footprint | F | |
| Productsystem | MiniCut | |
| Machining process - Main Application | Internal grooving | |
| Size | 11.0000" | 279.400 mm |

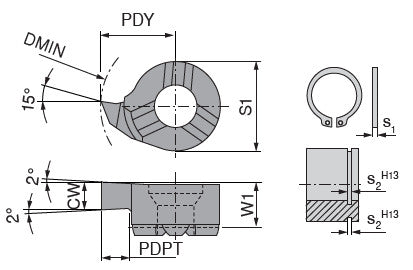

| Minimum bore diameter / DMIN | 0.4331" | 11.000 mm |
| Cutting width / CW | 0.0366" | 0.930 mm |
| Insert width / W1 | 0.1654" | 4.200 mm |
| Profile distance ey / PDY | 0.2638" | 6.700 mm |
| S1 - CIRCLIP | 0.0315" | 0.800 mm |
| S2 - CIRCLIP H13 | 0.0354" | 0.900 mm |
| Profile depth insert / PDPT | 0.0591" | 1.500 mm |
| Insert thickness total / S1 | 0.3150" | 8.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
