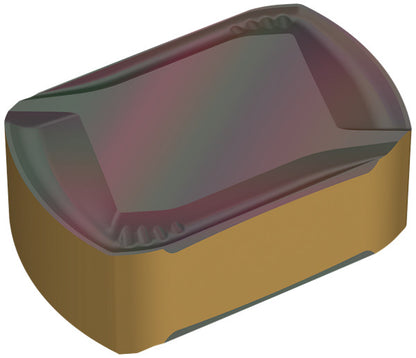

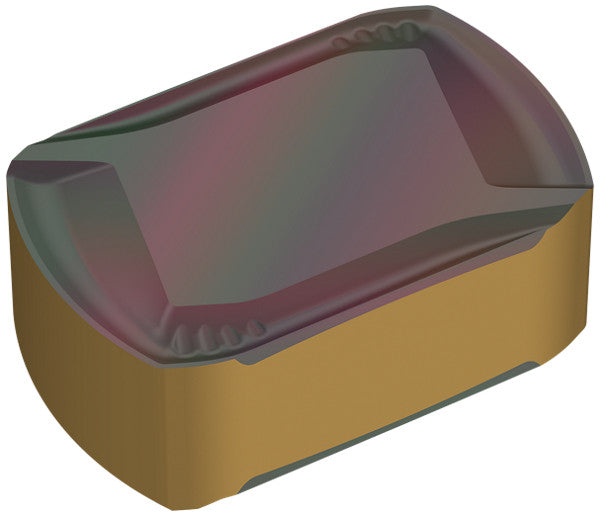

Ceratizit LNGX 171020-M30S60 CTCP615-P MaxiTurn Carbide Bar Peeling indexable Insert 7408540403 (0828635)
Ceratizit LNGX 171020-M30S60 CTCP615-P MaxiTurn Carbide Bar Peeling indexable Insert 7408540403 (0828635)
Couldn't load pickup availability
Ceratizit Article Number: 7408540403
Ceratizit Material Number: 14993533
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit LNGX 171020-M30S60 CTCP615-P MaxiTurn Carbide Bar Peeling indexable Insert 7408540403 | |
| EDP # | 0828635 | |
| designation | 171020-M30S60 | |

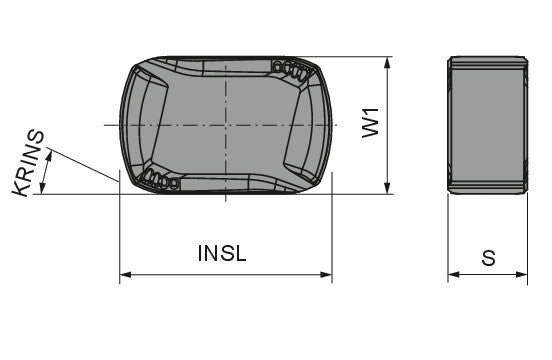

| Length of the secondary cutting edge | 0.6693" | 17.000 mm |
| Cutting edge angle major / KRINS | 25 ° | |
| Insert thickness / S | 0.3937" | 10.000 mm |
| Insert length / INSL | 1.1024" | 28.000 mm |
| Insert width / W1 | 0.7087" | 18.000 mm |
| Insert index count / NOI | 8.0000" | 203.200 mm |
| 2.55 + 0.45 | ||
| support chamfer angle / GB | 6 ° | |
| Cutting edge major radius / CEMR | 0.7087" | 18.000 mm |
| Face land size code / FLSC | S60 | |
| Face land width / BN | 0.0079" | 0.200 mm |
| Chip breaker (Ceratizit) / CBMD | -M30 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP615-P | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
