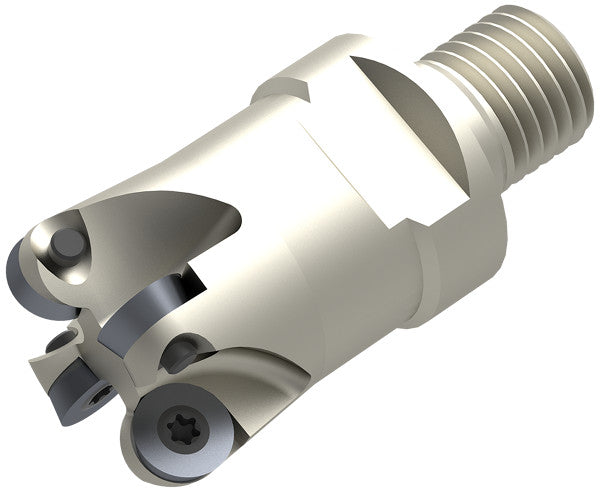

Ceratizit R1000G.30.5.M16-07.IK CoreLine Screw-in Button Insert Milling Cutter 56403301 (0828756)
Ceratizit R1000G.30.5.M16-07.IK CoreLine Screw-in Button Insert Milling Cutter 56403301 (0828756)
Couldn't load pickup availability
Ceratizit Article Number: 56403301
Ceratizit Material Number: 5640330100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit R1000G.30.5.M16-07.IK CoreLine Screw-in Button Insert Milling Cutter 56403301 | |
| EDP # | 0828756 | |
| Weight (1 pc.) | 5.0 oz | 153 g |
| Machining process - Main Application | Plunge milling | |

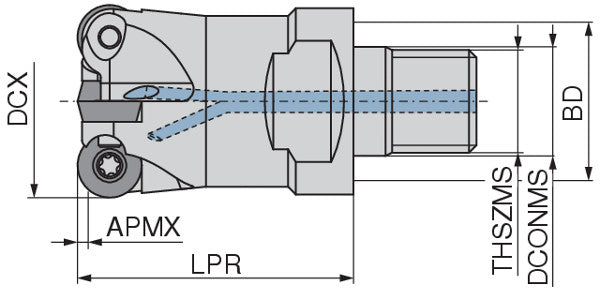

| Cutting diameter maximum / DCX | 1.1811" | 30.000 mm |
| Face mounted insert count / ZNF | 5 | |
| Depth of cut maximum / APMX | 0.0591" | 1.500 mm |
| Protruding length / LPR | 1.1220" | 28.500 mm |
| Connection thread nominal size / THSZMS | M16 | |
| Mounting spigot diameter / DCONMS | 0.6693" | 17.000 mm |
| Neck diameter (BD) / BD | 1.1417" | 29.000 mm |
| Insert | RD.X 0702.. | |
| torque moment | 0.9 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
