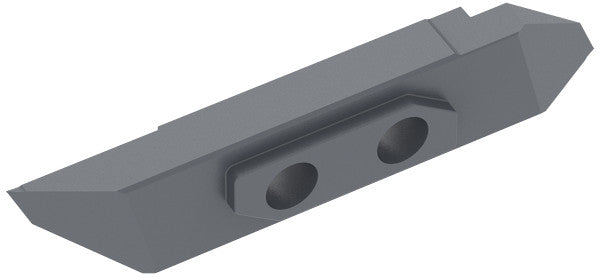

Ceratizit 3006-44.UN.10.60.VP.L WPU7620 CoreLine Carbide Turning indexable Insert 7253150400 (0828768)
Ceratizit 3006-44.UN.10.60.VP.L WPU7620 CoreLine Carbide Turning indexable Insert 7253150400 (0828768)
Couldn't load pickup availability
Ceratizit Article Number: 7253150400
Ceratizit Material Number: 7253150400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

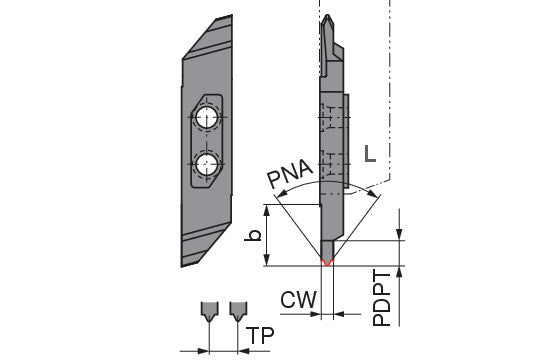

| Properties | ||
|---|---|---|
| Name | Ceratizit 3006-44.UN.10.60.VP.L WPU7620 CoreLine Carbide Turning indexable Insert 7253150400 | |
| EDP # | 0828768 | |
| Thread pitch / TP | 0.0227" | 0.580 mm |
| Cutting width / CW | 0.0315" | 0.800 mm |
| Profile depth insert / PDPT | 0.0551" | 1.400 mm |
| Insert length / INSL | 1.5748" | 40.000 mm |
| Profile included angle / PNA | 60 ° | |
| Shank width (B) | 0.3150" | 8.000 mm |
| Coating name / Grade (Ceratizit) / COATN | WPU7620 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
