Ceratizit MINICUT.08/7,80.R.30°.1,3 CWX500 CoreLine - Cutting Inserts For Back Boring - 73330013 (0828777)
Ceratizit MINICUT.08/7,80.R.30°.1,3 CWX500 CoreLine - Cutting Inserts For Back Boring - 73330013 (0828777)
Couldn't load pickup availability
Ceratizit Article Number: 73330013
Ceratizit Material Number: 7333001300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

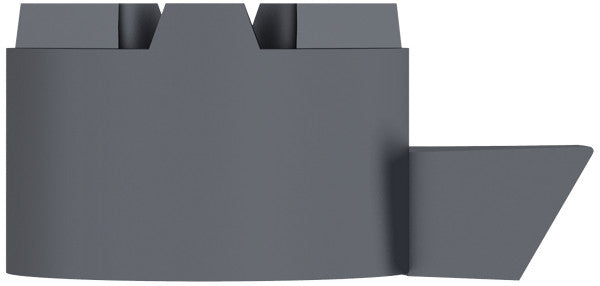

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

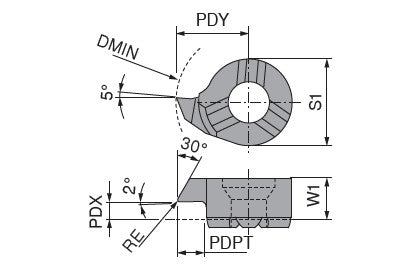

| Properties | ||
|---|---|---|
| Name | Ceratizit MINICUT.08/7,80.R.30°.1,3 CWX500 CoreLine - Cutting Inserts For Back Boring - 73330013 | |
| EDP # | 0828777 | |
| Product-Carbon-Footprint | F | |
| Product System | MiniCut | |
| Machining process - Main Application | Internal drilling and turning | |
| Size | 8.0000" | 203.200 mm |
| Minimum bore diameter / DMIN | 0.3071" | 7.800 mm |
| Insert width / W1 | 0.1378" | 3.500 mm |
| Profile distance ex / PDX | 0.0394" | 1.000 mm |
| Profile distance ey / PDY | 0.1831" | 4.650 mm |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting depth maximum / CDX | 0.0236" | 0.600 mm |
| Profile depth insert / PDPT | 0.0512" | 1.300 mm |
| Insert thickness total / S1 | 0.2362" | 6.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
