Ceratizit MINICUT.09.R.30°.1,7 CWX500 CoreLine - Cutting Inserts For Back Boring - 73330117 (0828778)
Ceratizit MINICUT.09.R.30°.1,7 CWX500 CoreLine - Cutting Inserts For Back Boring - 73330117 (0828778)
Couldn't load pickup availability
Ceratizit Article Number: 73330117
Ceratizit Material Number: 7333011700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

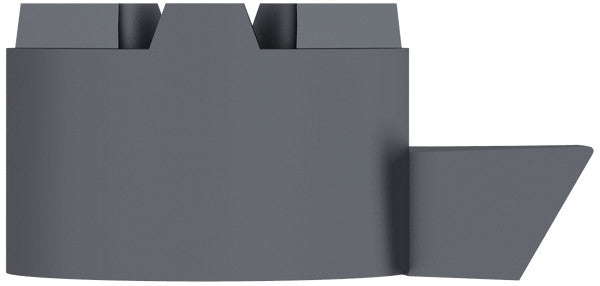

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

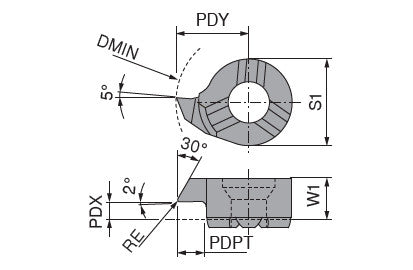

| Properties | ||
|---|---|---|
| Name | Ceratizit MINICUT.09.R.30°.1,7 CWX500 CoreLine - Cutting Inserts For Back Boring - 73330117 | |
| EDP # | 0828778 | |
| Product-Carbon-Footprint | F | |
| Product System | MiniCut | |
| Machining process - Main Application | Internal drilling and turning | |
| Size | 9.0000" | 228.600 mm |
| Minimum bore diameter / DMIN | 0.3543" | 9.000 mm |
| Insert width / W1 | 0.1398" | 3.550 mm |
| Profile distance ex / PDX | 0.0472" | 1.200 mm |
| Profile distance ey / PDY | 0.2165" | 5.500 mm |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting depth maximum / CDX | 0.0315" | 0.800 mm |
| Profile depth insert / PDPT | 0.0669" | 1.700 mm |
| Insert thickness total / S1 | 0.2441" | 6.200 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
