Ceratizit MINICUT.08.R.45°.1,4 CWX500 CoreLine - Inserts For Turning And Chamfering - 73334010 (0828783)
Ceratizit MINICUT.08.R.45°.1,4 CWX500 CoreLine - Inserts For Turning And Chamfering - 73334010 (0828783)
Couldn't load pickup availability
Ceratizit Article Number: 73334010
Ceratizit Material Number: 7333401000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

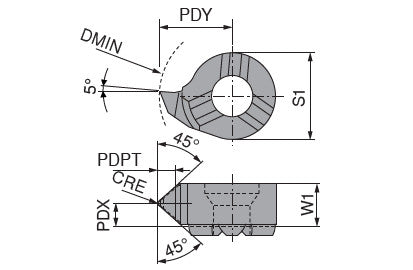

| Properties | ||
|---|---|---|
| Name | Ceratizit MINICUT.08.R.45°.1,4 CWX500 CoreLine - Inserts For Turning And Chamfering - 73334010 | |
| EDP # | 0828783 | |
| Product-Carbon-Footprint | F | |
| Product System | MiniCut | |
| Machining process - Main Application | Internal drilling and turning | |
| Size | 8.0000" | 203.200 mm |
| Minimum bore diameter / DMIN | 0.3150" | 8.000 mm |
| Insert width / W1 | 0.1378" | 3.500 mm |
| Profile distance ex / PDX | 0.0709" | 1.800 mm |
| Profile distance ey / PDY | 0.1890" | 4.800 mm |
| Cutting depth maximum / CDX | 0.0236" | 0.600 mm |
| Profile depth insert / PDPT | 0.0551" | 1.400 mm |
| Insert thickness total / S1 | 0.2362" | 6.000 mm |
| Spot radius / CRE | 0.0079" | 0.200 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
