Ceratizit MINICUT.08/16,00.N.12,00.1,0.IK CoreLine - Steel Tool Holder - 73522012 (0828859)
Ceratizit MINICUT.08/16,00.N.12,00.1,0.IK CoreLine - Steel Tool Holder - 73522012 (0828859)
Couldn't load pickup availability
Ceratizit Article Number: 73522012
Ceratizit Material Number: 7352201200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

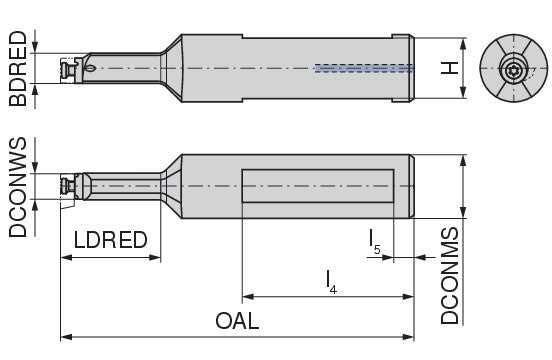

| Properties | ||
|---|---|---|
| Name | Ceratizit MINICUT.08/16,00.N.12,00.1,0.IK CoreLine - Steel Tool Holder - 73522012 | |
| EDP # | 0828859 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Product-Carbon-Footprint | E | |
| Product System | MiniCut | |
| Size | 8.0000" | 203.200 mm |
| Mounting spigot diameter / DCONMS f7 | 0.6299" | 16.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.2362" | 6.000 mm |
| Usable length / LU | 0.4921" | 12.500 mm |
| Overall length / OAL | 3.1496" | 80.000 mm |
| L4 | 2.3622" | 60.000 mm |
| Reduced body diameter length / LDRED | 0.4724" | 12.000 mm |
| Shank height / H | 0.5906" | 15.000 mm |
| L5 | 0.1969" | 5.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
