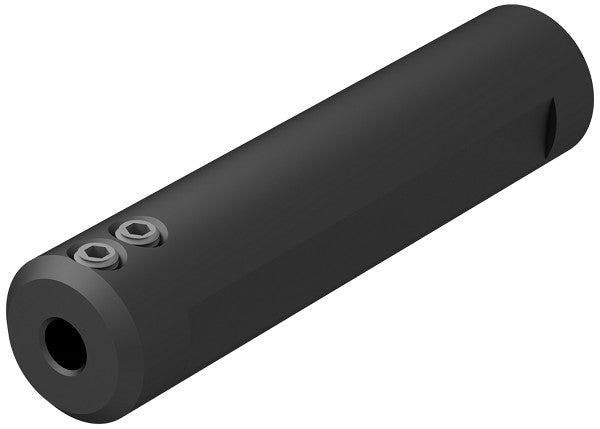

Ceratizit MINICUT.VG11-20 CoreLine Base Holder For Carbide Flexoholder 73526120 (0828878)
Ceratizit MINICUT.VG11-20 CoreLine Base Holder For Carbide Flexoholder 73526120 (0828878)
Couldn't load pickup availability
Ceratizit Article Number: 73526120
Ceratizit Material Number: 7352612000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

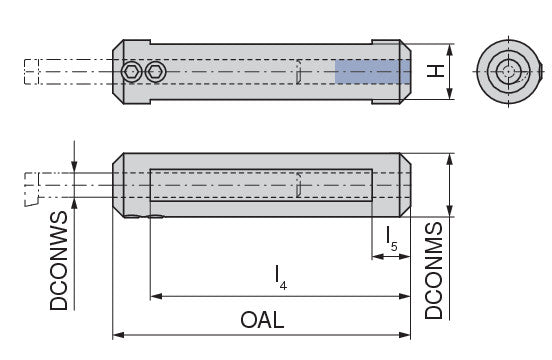

| Properties | ||
|---|---|---|
| Name | Ceratizit MINICUT.VG11-20 CoreLine Base Holder For Carbide Flexoholder 73526120 | |
| EDP # | 0828878 | |
| Product-Carbon-Footprint | E | |
| Product System | MiniCut | |
| Size | 11.0000" | 279.400 mm |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.3150" | 8.000 mm |
| Overall length / OAL | 2.9528" | 75.000 mm |
| L4 | 2.7559" | 70.000 mm |
| Shank height / H | 0.7087" | 18.000 mm |
| L5 | 0.3937" | 10.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
