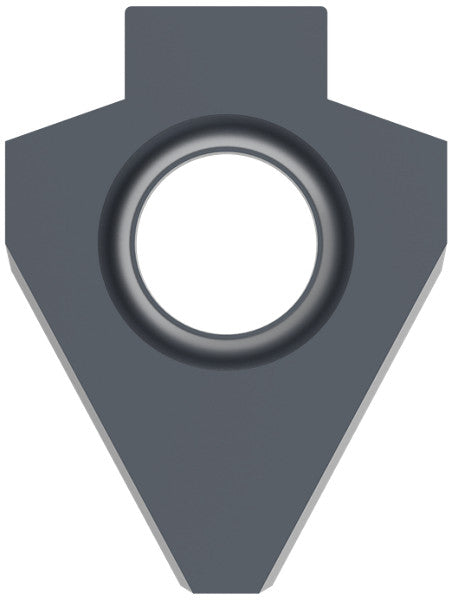

Ceratizit SLOTCUT.NPV.1202.05 TIALN CoreLine - Inserts - DIN 138 - 73604105 (0828907)
Ceratizit SLOTCUT.NPV.1202.05 TIALN CoreLine - Inserts - DIN 138 - 73604105 (0828907)
Couldn't load pickup availability
Ceratizit Article Number: 73604105
Ceratizit Material Number: 7360410500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SLOTCUT.NPV.1202.05 TIALN CoreLine - Inserts - DIN 138 - 73604105 | |
| EDP # | 0828907 | |
| Product-Carbon-Footprint | F | |
| Product System | SlotCut | |
| Machining process - Main Application | null | |
| B1 JS 9 | 0.7874" | 20.000 mm |
| Cutting width / CW | 0.4732" | 12.020 mm |
| Corner radius / RE | 0.0197" | 0.500 mm |
| Profile distance ey / PDY | 0.4291" | 10.900 mm |
| Insert length / INSL | 0.7953" | 20.200 mm |
| Minimum bore diameter / DMIN | 1.5748" | 40.000 mm |
| Insert width / W1 | 0.2087" | 5.300 mm |
| Profile depth insert / PDPT | 0.3346" | 8.500 mm |
| Coating name / Grade (Ceratizit) / COATN | TiAlN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
