Ceratizit SER 0375 H11 CoreLine - Standard External Threading Holder 7828000600 (0828965)
Ceratizit SER 0375 H11 CoreLine - Standard External Threading Holder 7828000600 (0828965)
Couldn't load pickup availability
Ceratizit Article Number: 7828000600
Ceratizit Material Number: 7828000600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SER 0375 H11 CoreLine - Standard External Threading Holder 7828000600 | |
| EDP # | 0828965 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Hard/Tool Steel (Grey) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) Aluminum (Green) All Materials (White) | |

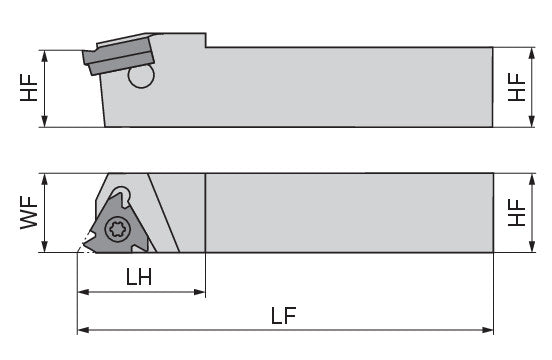

| Functional height / HF | 0.3750" | 9.520 mm |
| Functional width / WF | 0.4300" | 10.920 mm |
| Functional length / LF | 4.0000" | 101.600 mm |
| Head length / LH | 0.6300" | 16.000 mm |
| Insert | 11 .. | |
| Shank height / H | 0.3750" | 9.520 mm |
| torque moment | 1.3 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
