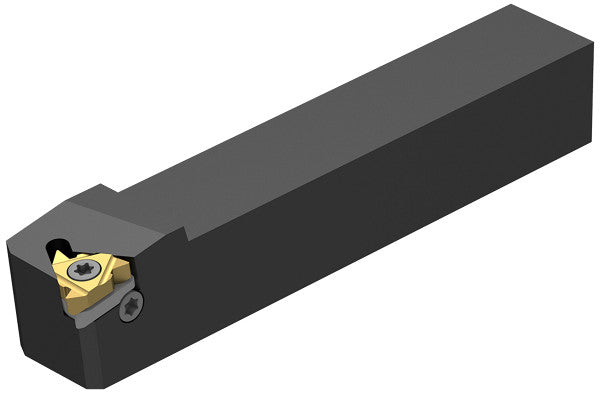

Ceratizit SER 0750 K16 CoreLine - Standard External Threading Holder 7828001200 (0828967)
Ceratizit SER 0750 K16 CoreLine - Standard External Threading Holder 7828001200 (0828967)
Couldn't load pickup availability
Ceratizit Article Number: 7828001200
Ceratizit Material Number: 7828001200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SER 0750 K16 CoreLine - Standard External Threading Holder 7828001200 | |
| EDP # | 0828967 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Steel (Blue) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) All Materials (White) | |

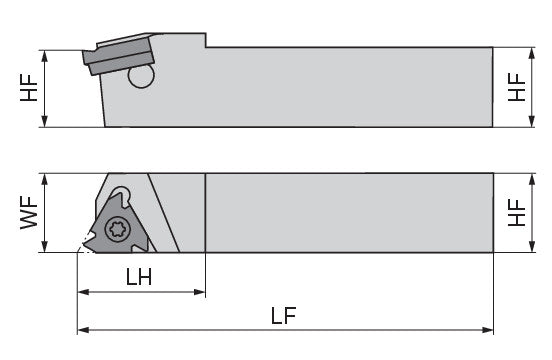

| Functional height / HF | 0.7500" | 19.050 mm |
| Functional width / WF | 0.7500" | 19.050 mm |
| Functional length / LF | 5.0000" | 127.000 mm |
| Head length / LH | 1.0000" | 25.400 mm |
| Insert | 16 .. | |
| Shank height / H | 0.7500" | 19.050 mm |
| torque moment | 3.5 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
