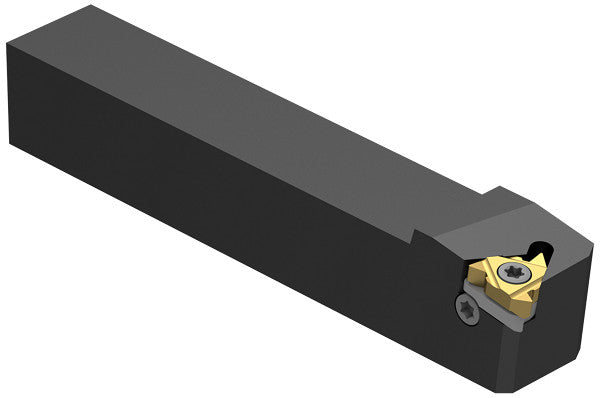

Ceratizit SEL 0500 F16 CoreLine - Standard External Threading Holder 7828100800 (0828974)
Ceratizit SEL 0500 F16 CoreLine - Standard External Threading Holder 7828100800 (0828974)
Couldn't load pickup availability
Ceratizit Article Number: 7828100800
Ceratizit Material Number: 7828100800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SEL 0500 F16 CoreLine - Standard External Threading Holder 7828100800 | |
| EDP # | 0828974 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Steel (Blue) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |

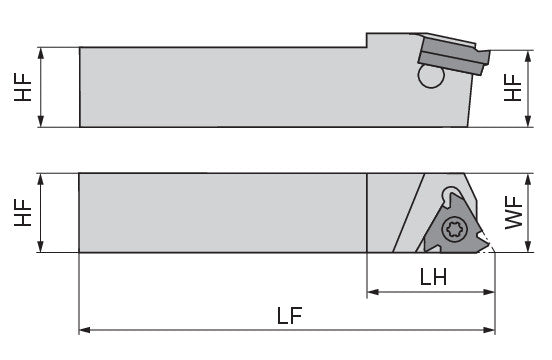

| Functional height / HF | 0.5000" | 12.700 mm |
| Functional width / WF | 0.6300" | 16.000 mm |
| Functional length / LF | 3.2500" | 82.550 mm |
| Head length / LH | 0.8700" | 22.100 mm |
| Insert | 16 .. | |
| Shank height / H | 0.5000" | 12.700 mm |
| torque moment | 3.5 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
