Ceratizit SEL 1250 P16 CoreLine - Standard External Threading Holder 7828102000 (0828977)
Ceratizit SEL 1250 P16 CoreLine - Standard External Threading Holder 7828102000 (0828977)
Couldn't load pickup availability
Ceratizit Article Number: 7828102000
Ceratizit Material Number: 7828102000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SEL 1250 P16 CoreLine - Standard External Threading Holder 7828102000 | |
| EDP # | 0828977 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Steel (Blue) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |

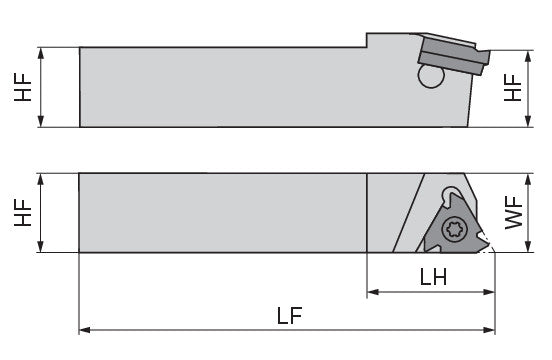

| Functional height / HF | 1.2500" | 31.750 mm |
| Functional width / WF | 1.2500" | 31.750 mm |
| Functional length / LF | 7.0000" | 177.800 mm |
| Head length / LH | 1.1200" | 28.450 mm |
| Insert | 16 .. | |
| Shank height / H | 1.2500" | 31.750 mm |
| torque moment | 3.5 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
