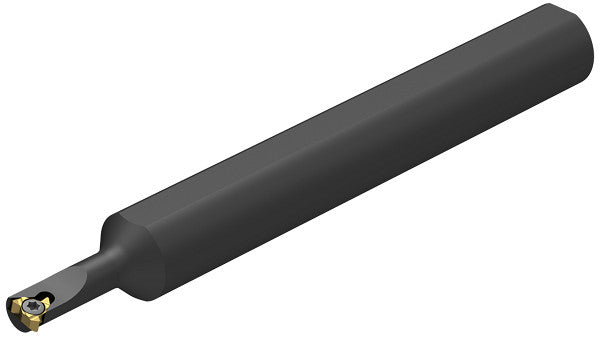

Ceratizit SIR 0205 H06CB CoreLine - Right Internal Threading Holder - Mini Size 7828200800 (0828980)
Ceratizit SIR 0205 H06CB CoreLine - Right Internal Threading Holder - Mini Size 7828200800 (0828980)
Couldn't load pickup availability
Ceratizit Article Number: 7828200800
Ceratizit Material Number: 7828200800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SIR 0205 H06CB CoreLine - Right Internal Threading Holder - Mini Size 7828200800 | |
| EDP # | 0828980 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Shank height / H | 0.2200" | 5.590 mm |
| Functional length / LF | 4.0000" | 101.600 mm |
| Reduced body diameter length / LDRED | 1.0200" | 25.910 mm |
| Mounting spigot diameter / DCONMS | 0.5000" | 12.700 mm |
| Body diameter, reduced / BDRED | 0.2000" | 5.080 mm |
| Functional width / WF | 0.1700" | 4.320 mm |
| Minimum bore diameter / DMIN | 0.2400" | 6.100 mm |
| Insert | 06 .. | |
| torque moment | 0.6 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
