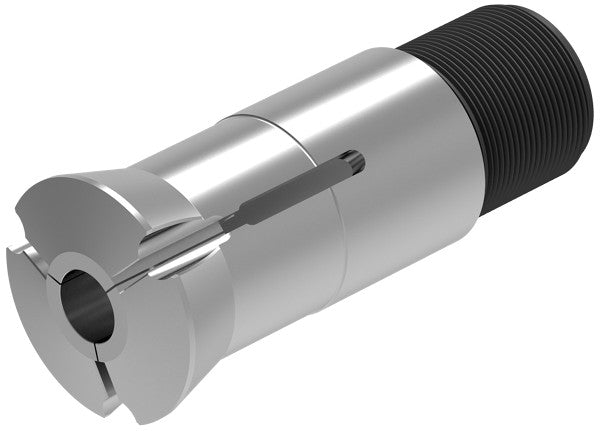

Ceratizit GB.T229.FB.22,225(7/8").R Adjustable Guide Bush 8104122225 (0830873)
Ceratizit GB.T229.FB.22,225(7/8").R Adjustable Guide Bush 8104122225 (0830873)
Couldn't load pickup availability
Ceratizit Article Number: 8104122225
Ceratizit Material Number: 8104122225
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit GB.T229.FB.22,225 | |
| EDP # | 0830873 | |
| Clamping diameter (DCONWS) / DCONWS | 0.8750" | 22.220 mm |
| Connection diameter workpiece side / DCONWS | 7/8 | |
| Designation | GB. 229T ... R | |
| Body half taper angle / BHTA | 16 ° | |
| Overall length / OAL | 3.2283" | 82.000 mm |
| Guide diameter / DGUI | 1.6535" | 42.000 mm |
| Functional diameter / DFC | 1.9291" | 49.000 mm |
| Thread designation outside / THOD | M40 x 1 | |
| Profile type | round | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
