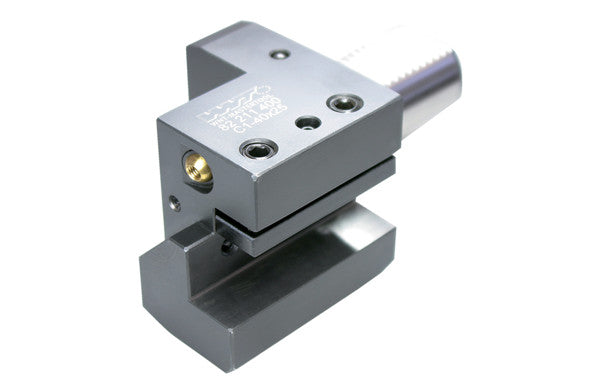

Ceratizit ISO10889.VDI16.C1.VLA.12.44.IK CoreLine - Axial Square Section Tool Holder 82211160 (0831041)
Ceratizit ISO10889.VDI16.C1.VLA.12.44.IK CoreLine - Axial Square Section Tool Holder 82211160 (0831041)
Couldn't load pickup availability
Ceratizit Article Number: 82211160
Ceratizit Material Number: 8221116000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

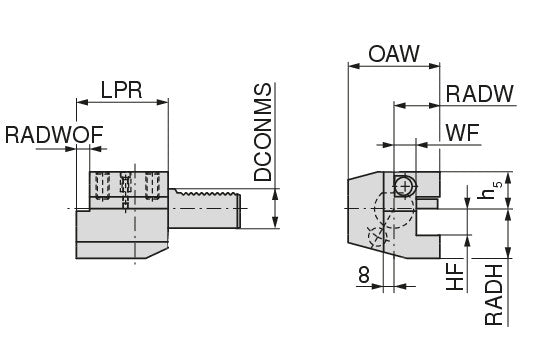

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO10889.VDI16.C1.VLA.12.44.IK CoreLine - Axial Square Section Tool Holder 82211160 | |
| EDP # | 0831041 | |
| Mounting spigot diameter / DCONMS h6 | 0.6299" | 16.000 mm |
| Machine interface size | VDI 16 | |
| Functional height / HF 0/-0,1 | 0.4724" | 12.000 mm |
| Protruding length / LPR | 1.7323" | 44.000 mm |
| Overall width / OAW | 1.6929" | 43.000 mm |
| H5 | 0.7874" | 20.000 mm |
| Radial offset width / RADWOF | 0.1969" | 5.000 mm |
| Overall height / OAH | 1.6535" | 42.000 mm |
| Radial width / RADW | 0.9449" | 24.000 mm |
| Radial height / RADH | 0.8661" | 22.000 mm |
| Functional width / WF 0/+0,3 | 0.5118" | 13.000 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
