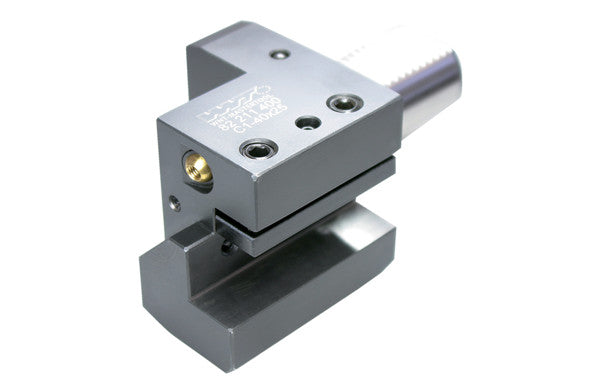

Ceratizit ISO10889.VDI40.C1.VLA.25/20.85.IK CoreLine - Axial Square Section Tool Holder 82211400 (0831045)
Ceratizit ISO10889.VDI40.C1.VLA.25/20.85.IK CoreLine - Axial Square Section Tool Holder 82211400 (0831045)
Couldn't load pickup availability
Ceratizit Article Number: 82211400
Ceratizit Material Number: 8221140000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

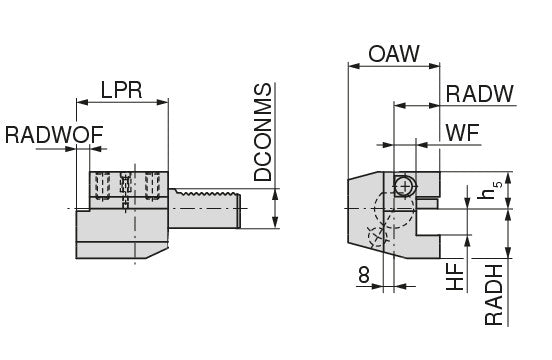

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO10889.VDI40.C1.VLA.25/20.85.IK CoreLine - Axial Square Section Tool Holder 82211400 | |
| EDP # | 0831045 | |
| Mounting spigot diameter / DCONMS h6 | 1.5748" | 40.000 mm |
| Machine interface size | VDI 40 | |
| Functional height / HF 0/-0,1 | 0.9843" | 25.000 mm |
| Protruding length / LPR | 3.3465" | 85.000 mm |
| Overall width / OAW | 3.3465" | 85.000 mm |
| H5 | 1.2795" | 32.500 mm |
| Radial offset width / RADWOF | 0.4921" | 12.500 mm |
| Overall height / OAH | 3.1693" | 80.500 mm |
| Radial width / RADW | 1.6732" | 42.500 mm |
| Radial height / RADH | 1.8898" | 48.000 mm |
| Functional width / WF 0/+0,3 | 0.8071" | 20.500 mm |
| Version | Right | |
Background Information:
The ISO 10889 / DIN 69880 tool holder interface utliizes a cylindrical shank and a transverse, straight rack spline for mounting.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
