Ceratizit DO/SP.BMT45.KH.32.85.IK CoreLine - Doosan - - Combi Tool Holder 8248003005 (0831109)
Ceratizit DO/SP.BMT45.KH.32.85.IK CoreLine - Doosan - - Combi Tool Holder 8248003005 (0831109)
Couldn't load pickup availability
Ceratizit Article Number: 8248003005
Ceratizit Material Number: 8248003005
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

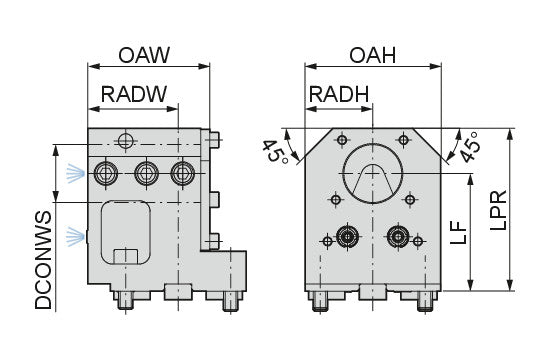

| Properties | ||
|---|---|---|
| Name | Ceratizit DO/SP.BMT45.KH.32.85.IK CoreLine - Doosan - - Combi Tool Holder 8248003005 | |
| EDP # | 0831109 | |
| Overall width / OAW | 2.6575" | 67.500 mm |
| Overall height / OAH | 2.9528" | 75.000 mm |
| Protruding length / LPR | 4.3307" | 110.000 mm |
| Functional length / LF | 3.3465" | 85.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.2598" | 32.000 mm |
| Radial height / RADH | 1.4764" | 37.500 mm |
| Doosan | ||
| Machine interface size | BMT 45 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
