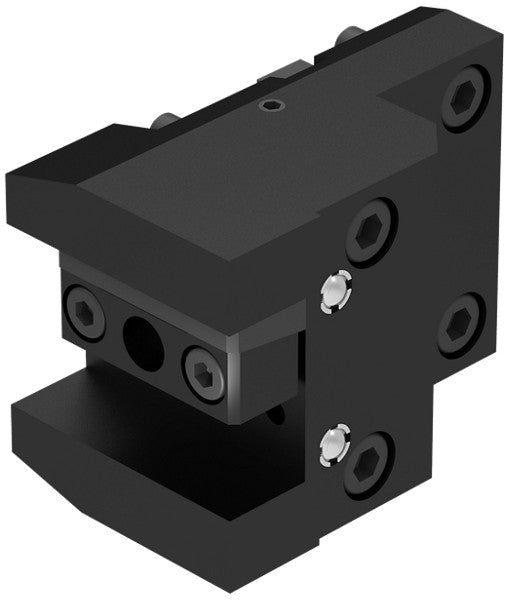

Ceratizit EM.BMT55.VLA.L.25.DC CoreLine - EMAG - - Axial Square Section Tool Holder 8248200004 (0831117)
Ceratizit EM.BMT55.VLA.L.25.DC CoreLine - EMAG - - Axial Square Section Tool Holder 8248200004 (0831117)
Couldn't load pickup availability
Ceratizit Article Number: 8248200004
Ceratizit Material Number: 8248200004
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

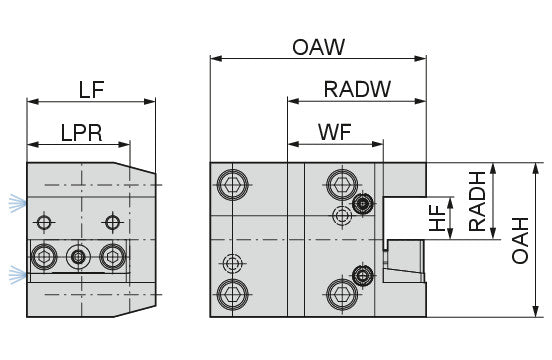

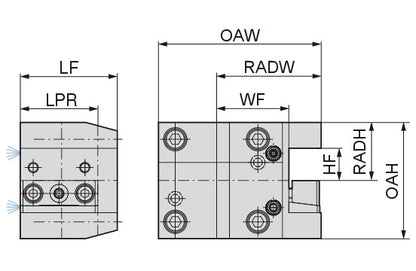

| Properties | ||
|---|---|---|
| Name | Ceratizit EM.BMT55.VLA.L.25.DC CoreLine - EMAG - - Axial Square Section Tool Holder 8248200004 | |
| EDP # | 0831117 | |
| Overall width / OAW | 4.9606" | 126.000 mm |
| Overall height / OAH | 3.5433" | 90.000 mm |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| Functional length / LF | 2.9528" | 75.000 mm |
| Functional height / HF | 0.9843" | 25.000 mm |
| Radial height / RADH | 1.7717" | 45.000 mm |
| Functional width / WF | 2.2047" | 56.000 mm |
| EMAG | ||
| Machine interface size | BMT 55 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
